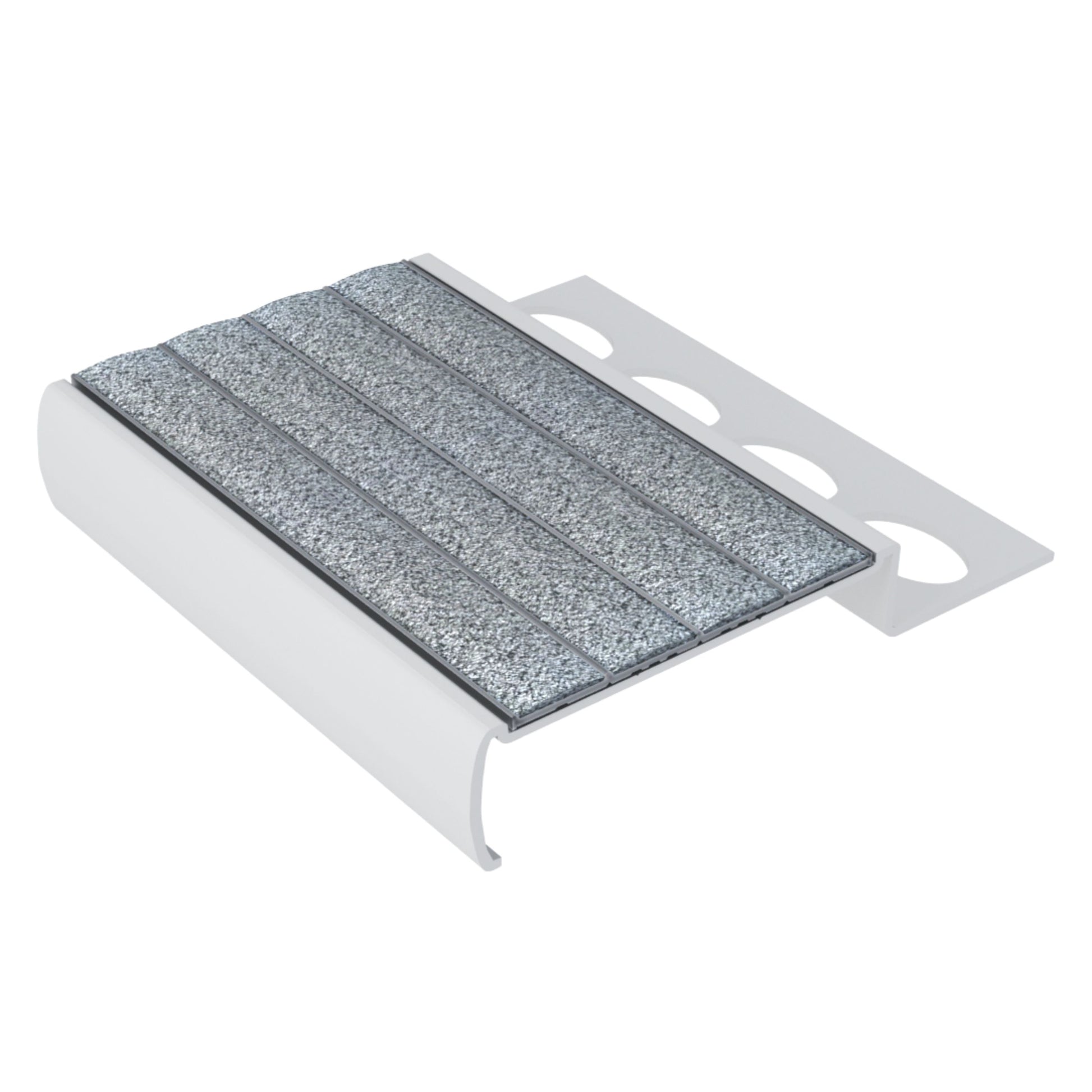

M4160.10 Gray Non-Slip Tile Nosing, 8 FT | Ecoglo® M4.10-N30 Series
Ecoglo® M4160.10 is the gray anti-slip model in the M4.10-N30 tile stair-nosing series. Designed for tiled stair installations using tile approximately 3/16" to 11/32" thick (5 mm to 8.5 mm), it combines durable anodized-aluminum construction with hard-wearing gray silicon-carbide non-slip material for reliable traction and a neutral architectural stair-edge finish.
Gray Non-Slip Tile Stair Nosing for Commercial & Government Projects
Ecoglo® M4160.10 is designed for specification-driven tiled stair installations where architects, flooring contractors, general contractors, government contractors and facility owners require durable stair-edge protection and reliable slip resistance.
The M4.10-N30 profile combines a durable anodized-aluminum stair nosing with hard-wearing silicon-carbide non-slip material integrally bonded to the aluminum substrate.
The gray anti-slip surface offers a clean, neutral visual treatment that can complement many contemporary tiled stair finishes while providing a defined slip-resistant walking surface.
Engineered for Tile
The M4.10 profile is designed for tiled stairs using tile approximately 3/16"–11/32", or 5–8.5 mm, thick.
Gray Silicon-Carbide Anti-Slip
Hard-wearing gray silicon-carbide non-slip material provides durable traction with a neutral architectural appearance.
Durable Stair-Edge Protection
Anodized-aluminum construction provides a durable transition at the front of the tiled stair tread while helping protect the tile edge.
M4160.10 Gray Technical Specifications
Model-specific information helps architects, flooring contractors, estimators and project teams accurately identify the product during specification, submittal, procurement and installation.
| Specification | Ecoglo® M4160.10 Gray |
|---|---|
| Manufacturer | Ecoglo® |
| Model | M4160.10 |
| Series | M4.10-N30 Non-Slip Tile Nosing |
| Photoluminescent | No |
| Anti-Slip Color | Gray |
| Application | Tiled stair installations |
| Compatible Tile Thickness | 3/16"–11/32" 5 mm–8.5 mm |
| Horizontal Surface | Approx. 2.0" / 51 mm |
| Front Profile Height | Approx. 0.8" / 19.5 mm |
| Tile Profile Height | Approx. 0.4" / 10 mm |
| Overall Profile Width | Approx. 3.4" / 86.9 mm |
| Standard Length | 8 ft |
| Base Material | Anodized aluminum |
| Standard Finish | Clear anodized aluminum |
| Optional Aluminum Finishes | Black, Light Bronze and Dark Bronze anodized finishes may be available at additional cost |
| Anti-Slip Material | Hard-wearing silicon-carbide non-slip material integrally bonded to the aluminum substrate |
| Insert Supply | Inserts are supplied unattached |
| Insert Installation | Inserts are installed into the aluminum nosing using premium polyurethane adhesive; adhesive is not included |
| Slip-Resistance Testing | Manufacturer documentation references UL 410 and AS/NZS 4586-1999 |
| Product Classification | Non-slip, non-photoluminescent tile stair nosing |
| Country of Manufacture | Made in the USA |
Download the Ecoglo® M4.10-N30 Technical Data Sheet
Include the manufacturer technical data sheet in project submittals, product reviews, architectural approvals and close-out documentation.
M4.10-N30 Performance References
Ecoglo® manufacturer documentation references testing related to slip resistance, UV/weather exposure, abrasion resistance, washability and flammability for the M4.10-N30 series.
Slip Resistance
Manufacturer documentation references UL 410 and AS/NZS 4586-1999 slip-resistance testing.
UV & Weather Stability
Manufacturer documentation references ASTM G155-04 accelerated UV exposure, ASTM B117 salt-spray resistance and ASTM C1026 freeze-thaw testing.
Abrasion Resistance
Manufacturer documentation references ASTM D1242, ASTM F510 and JIS H8682-1 abrasion-resistance methods.
Washability
Manufacturer documentation references ASTM D4828 practical washability testing.
Flammability
Manufacturer documentation references ASTM E162, ASTM D635 and FAA AC 23.2 horizontal burn testing.
Made in the USA
Manufacturer technical information identifies the M4.10-N30 product as Made in the USA and describes the aluminum-based construction as recyclable.
Neutral Gray Stair-Edge Finish for Architectural Tile
M4160.10 is particularly suited to projects where the stair nosing should integrate visually with neutral architectural finishes while still providing a durable slip-resistant walking surface.
Neutral Appearance
Gray coordinates naturally with many concrete, stone, ceramic, porcelain and neutral-color tile finishes.
Durable Traction
The gray silicon-carbide material provides the same hard-wearing anti-slip function as the other M4.10-N30 color configurations.
Architectural Coordination
Gray can provide a more restrained finish where a strong Black or high-visibility Yellow stair edge is not required.
Engineered for High-Traffic Commercial & Institutional Stairs
Ecoglo® designed the M4.10-N30 profile for tiled stair environments where repeated foot traffic, slip resistance, abrasion resistance and durable stair-edge protection are important.
- Hard-wearing gray silicon-carbide non-slip material is integrally bonded to the aluminum substrate.
- Anodized-aluminum construction provides a durable architectural stair-edge profile.
- The anodized finish helps resist corrosion and abrasive wear.
- Gray anti-slip material provides a neutral stair-edge finish under normal lighting.
- Manufacturer documentation references accelerated UV/weathering, salt-spray and freeze-thaw testing.
- Suitable for consideration in indoor and outdoor tiled stair applications.
- Aluminum-based construction is recyclable.
- Product contains no photoluminescent stair-edge material.
How Ecoglo® M4160.10 Can Help Reduce Avoidable Project Delays
Incorrect stair-nosing profiles, incompatible tile thickness, incorrect color or missing technical information can contribute to RFIs, rejected submittals, deficiencies, replacement material and field rework.
M4160.10 provides a traceable manufacturer → series → model → color → technical data → approved detail → installation path for project verification.
1 Specify the Exact Product
Identify the product as Ecoglo® M4160.10 Gray Non-Slip Tile Nosing, M4.10-N30 Series .
2 Confirm Gray Is the Approved Color
Verify that the project finish schedule, specification or approved product submittal identifies the Gray anti-slip configuration.
3 Confirm It Is Non-Photoluminescent
M4160.10 is a non-slip, non-photoluminescent stair nosing. Do not substitute it where luminous or photoluminescent stair-edge marking is required.
4 Verify Tile Thickness
Confirm finished tile thickness falls within approximately 5 mm to 8.5 mm.
5 Include the Manufacturer Data Sheet
Submit the M4.10-N30 manufacturer technical data so dimensions, materials and performance references can be reviewed before installation.
6 Match the Approved Stair Detail
Confirm profile orientation, tile interface, gray insert placement and stair-edge location against approved drawings and current manufacturer installation information.
M4160.10 Gray Inspection-Readiness Checklist
- Manufacturer identified as Ecoglo®
- Exact model identified as M4160.10
- M4.10-N30 Series identified
- Gray anti-slip configuration confirmed
- Product confirmed as non-photoluminescent
- Finished tile thickness verified within 5–8.5 mm range
- M4.10-N30 technical data sheet included
- Architectural stair detail reviewed
- Slip-resistance requirements reviewed
- Required stair-edge contrast reviewed
- Insert installation and adhesive coordinated
- Installed stair-edge location matches approved documents
- Applicable project specifications reviewed
- Applicable local requirements reviewed
M4160.10 Gray for U.S. Commercial & Government Stair Projects
Ecoglo® M4160.10 can be considered for U.S. tiled-stair projects where architects, flooring contractors, general contractors, government contractors and facility owners require durable slip resistance with a neutral gray architectural finish.
For U.S. Architects & Specifiers
- Specify Ecoglo® M4160.10 by exact model number
- Identify M4.10-N30 as the non-slip series
- Specify the Gray anti-slip configuration
- Confirm finished tile thickness
- Review required stair-edge contrast
- Include current manufacturer technical documentation
For U.S. General & Government Contractors
- Confirm contract and approved-product requirements
- Verify M4160.10 Gray before procurement
- Coordinate quantities and 8-ft lengths
- Submit manufacturer data before installation
- Retain documentation for inspection and close-out
- Confirm applicable local requirements
U.S. Non-Slip Stair Nosing Project Considerations
M4160.10 for Large U.S. Commercial & Institutional Projects
- Federal government facilities
- State and municipal buildings
- Courthouses
- Airports and transportation facilities
- Rail and transit stations
- Hospitals and healthcare facilities
- Universities, colleges and schools
- Office buildings and corporate campuses
- Hotels and hospitality projects
- Retail and mixed-use developments
- Stadiums and arenas
- Institutional buildings
- Public infrastructure projects
M4160.10 Gray for Canadian Commercial & Government Stair Projects
Ecoglo® M4160.10 can be considered for Canadian tiled-stair projects where architects, flooring contractors, general contractors and government contractors require durable slip resistance with a neutral gray architectural finish.
Requirements vary by province, territory, municipality, building type, project specification and reviewing authority. The exact product should be evaluated against the requirements applicable to the project.
For Canadian Architects & Specifiers
- Specify Ecoglo® M4160.10 by exact model number
- Identify M4.10-N30 as the non-slip series
- Specify the Gray anti-slip configuration
- Confirm finished tile thickness
- Review applicable stair-edge contrast requirements
- Include manufacturer technical documentation
For Canadian General & Government Contractors
- Confirm tender and approved-product requirements
- Verify M4160.10 Gray before procurement
- Coordinate quantities and 8-ft lengths
- Submit technical documentation before installation
- Retain approved documentation for close-out
- Confirm provincial or territorial requirements
Canadian Non-Slip Stair Nosing Project Considerations
M4160.10 for Large Canadian Commercial & Institutional Projects
- Government of Canada facilities
- Provincial government buildings
- Municipal and public facilities
- Courthouses
- Airports and transportation facilities
- Rail and transit stations
- Hospitals and healthcare facilities
- Universities, colleges and schools
- Office buildings
- Hotels and hospitality projects
- Retail and mixed-use developments
- Stadiums and arenas
- Institutional facilities
- Public infrastructure projects
Architect & Specification Support
Specifying M4160.10 by exact model number helps coordinate tile thickness, stair geometry, Gray anti-slip color, aluminum finish and installation details before material reaches the jobsite.
Manufacturer: Ecoglo®
Product: M4160.10 Gray Non-Slip Tile Stair Nosing, M4.10-N30 Series.
Product Type: Non-photoluminescent tile stair nosing with integrated silicon-carbide non-slip material.
Application: Tiled stair installations using finished tile approximately 3/16"–11/32" (5–8.5 mm) thick.
Anti-Slip Color: Gray.
Material: Anodized-aluminum tile stair-nosing profile incorporating integrally bonded gray silicon-carbide non-slip material.
Standard Finish: Clear anodized aluminum.
Length: 8 ft.
Installation: Install in accordance with current Ecoglo® manufacturer instructions, approved project documents and applicable requirements.
Submittals: Provide current product data, applicable testing documentation, architectural details and installation information required by the contract documents.
Specifier Note: This suggested language should be reviewed and edited by the project architect or specification consultant for the specific application and jurisdiction.
Compare Ecoglo® M4.10-N30 Non-Slip Tile Nosing Colors
Compare Black, Gray and Yellow M4.10-N30 tile stair nosings to select the color that best coordinates with the architectural finish and project requirements.
M4170.10 Black
Black silicon-carbide non-slip tile stair nosing for durable traction and strong stair-edge definition.
View M4170.10 Black →
M4160.10 Gray
Gray silicon-carbide non-slip tile stair nosing for durable traction with a neutral architectural appearance.
Currently Viewing
M4150.10 Yellow
High-visibility yellow silicon-carbide non-slip tile stair nosing for conspicuous stair-edge contrast.
View M4150.10 Yellow →Need Photoluminescent Tile Stair Nosing Instead?
M4160.10 Gray N30
Provides durable silicon-carbide slip resistance and neutral Gray architectural stair-edge definition under normal illumination.
Not photoluminescent.
Ecoglo® Photoluminescent Tile Stair Nosings
For projects requiring luminous stair-edge visibility when normal illumination is reduced, compare the Ecoglo® photoluminescent M4 tile stair-nosing range.
Frequently Asked Questions About Ecoglo® M4160.10 Gray
What is Ecoglo® M4160.10?
Ecoglo® M4160.10 is the Gray anti-slip model in the M4.10-N30 non-slip tile stair-nosing series. It combines an anodized-aluminum tile profile with integrally bonded gray silicon-carbide non-slip material.
Is M4160.10 photoluminescent?
No. M4160.10 is a non-photoluminescent M4.10-N30 non-slip tile nosing. It provides slip resistance and visible stair-edge definition under normal illumination but does not glow when the lighting is removed.
Why choose the Gray M4160.10 model?
Gray provides a neutral architectural appearance that can coordinate well with concrete, stone, porcelain and other neutral-color tiled stair finishes while maintaining durable silicon-carbide traction.
What tile thickness fits M4160.10?
The M4.10 profile is designed for tile approximately 3/16" to 11/32" thick, equivalent to approximately 5 mm to 8.5 mm.
What length is M4160.10?
The M4.10-N30 tile stair-nosing profile is supplied in 8-foot lengths.
Is M4160.10 slip resistant?
Yes. M4160.10 incorporates hard-wearing silicon-carbide non-slip material integrally bonded to the aluminum substrate. Manufacturer documentation references UL 410 and AS/NZS 4586-1999 slip-resistance testing.
Can M4160.10 be used outdoors?
Ecoglo® identifies the M4.10-N30 series for indoor and outdoor use and references accelerated UV/weathering, salt-spray and freeze-thaw testing in its technical documentation.
Are the anti-slip inserts supplied attached?
No. Ecoglo® states that the inserts are supplied unattached. They are installed into the aluminum profile using premium polyurethane adhesive, which is not included.
Can M4160.10 replace a photoluminescent stair nosing?
Not where luminous or photoluminescent stair-edge marking is specifically required. M4160.10 is a non-slip Gray product and does not provide photoluminescent illumination.
Can M4160.10 help reduce submittal or inspection delays?
Correctly identifying M4160.10 Gray, verifying tile thickness, providing current manufacturer technical data and matching the approved stair detail can help reduce avoidable submittal questions, deficiencies and field corrections. Final approval remains with the applicable reviewing authority.
Is M4160.10 suitable for U.S. government projects?
M4160.10 can be considered for U.S. government, commercial and institutional tiled-stair projects where an appropriate Gray non-slip stair nosing is specified. Contract and jurisdictional requirements should be verified before procurement.
Is M4160.10 suitable for Canadian government projects?
M4160.10 can be considered for Canadian federal, provincial, municipal, commercial and institutional tiled-stair projects where an appropriate Gray non-slip stair nosing is specified. Tender and jurisdictional requirements should be verified before procurement.
What other M4.10-N30 colors are available?
Other M4.10-N30 models include M4170.10 Black and M4150.10 Yellow .
