Ecoglo® photoluminescent cast-in-place stair nosings combine passive luminous step-edge visibility with a durable anti-slip surface for new concrete stair construction.
Unlike surface-mounted retrofit nosings, cast-in-place profiles are incorporated directly into wet concrete during construction. This creates a clean transition between the concrete tread and stair-edge profile while providing a permanent, highly visible stair-edge solution.
Choose from the S10-E30, S10-E40, S2-E30, S2-E40, S3-G, S4-E30 and S4-E40 Series according to profile geometry, photoluminescent configuration and project requirements.
Ecoglo offers seven primary photoluminescent cast-in-place stair-nosing series for new concrete stair construction. E30 profiles generally use three photoluminescent strips, while E40 profiles increase the luminous area with five photoluminescent strips.
The wider S3-G profile provides another configuration for projects requiring a broader step-edge treatment. Select a series below to review available models, profile dimensions and product options.
A compact cast-in-place profile combining three photoluminescent strips with an anti-slip area for new concrete stair construction.
The S10-E40 uses the compact S10 profile with five photoluminescent strips plus an anti-slip surface.
S2-E30 combines three photoluminescent strips with a wide silicon-carbide anti-slip area in an approximately 2.2-inch-wide profile.
S2-E40 increases the luminous component to five strips while retaining the S2 cast-in-place profile and anti-slip area.
The wider S3-G provides a larger stair-edge profile incorporating multiple photoluminescent and anti-slip areas.
S4-E30 combines three photoluminescent strips with a wide anti-slip area in an approximately 2.2-inch-wide aluminum cast-in-place profile.
S4-E40 retains the S4 profile while increasing the luminous component to five photoluminescent strips.
Browse the available Ecoglo® photoluminescent concrete stair-nosing products below. Individual series pages provide additional profile, color, model-number and specification information.
Photoluminescent cast-in-place stair nosing is designed for new concrete stair construction and is incorporated into the leading edge of the stair while the concrete is still wet.
Ecoglo® cast-in-place profiles combine a durable anti-slip component with photoluminescent step-edge material. Under normal illumination, the contrasting stair edge helps identify the leading edge of each step. When normal lighting is reduced, the photoluminescent material provides passive visible step-edge definition without requiring an electrical connection at the nosing.
These profiles are designed for applications including conventional concrete stairs, concrete-filled steel-pan stairs and precast concrete stairs .
Compare the major Ecoglo® photoluminescent cast-in-place profiles by overall profile size, luminous configuration and anti-slip arrangement. Final product selection should be coordinated with project drawings, specifications and current manufacturer documentation.
| Series | Profile | Photoluminescent Configuration | Anti-Slip Configuration | Selection Consideration |
|---|---|---|---|---|
| S10-E30 | Approx. 2.1" wide compact S10 profile | 3 photoluminescent strips | Large anti-slip strip | Compact profile with an E30 luminous configuration |
| S10-E40 | Approx. 2.1" wide compact S10 profile | 5 photoluminescent strips | Integrated anti-slip strip | Increased luminous area in the compact S10 profile |
| S2-E30 | Approx. 2.2" wide S2 profile | 3 photoluminescent strips | Wide anti-slip area | Broad anti-slip surface combined with E30 marking |
| S2-E40 | S2 cast-in-place profile | 5 photoluminescent strips | Integrated slip-resistant area | Larger luminous component in the S2 profile |
| S3-G | Approx. 3.3" wide profile | 5 photoluminescent strips | 4 anti-slip sections | Wider stair-edge profile with extensive step-edge treatment |
| S4-E30 | Approx. 2.2" wide S4 profile | 3 photoluminescent strips | Wide anti-slip area | Balanced luminous and anti-slip configuration |
| S4-E40 | Approx. 2.2" wide S4 profile | 5 photoluminescent strips | Integrated anti-slip area | Increased luminous stair-edge area in the S4 profile |
The S4-E30 Series is available with Black, Gray and Yellow anti-slip configurations. These model-specific options allow architects, contractors and procurement teams to coordinate stair-edge contrast with project requirements.

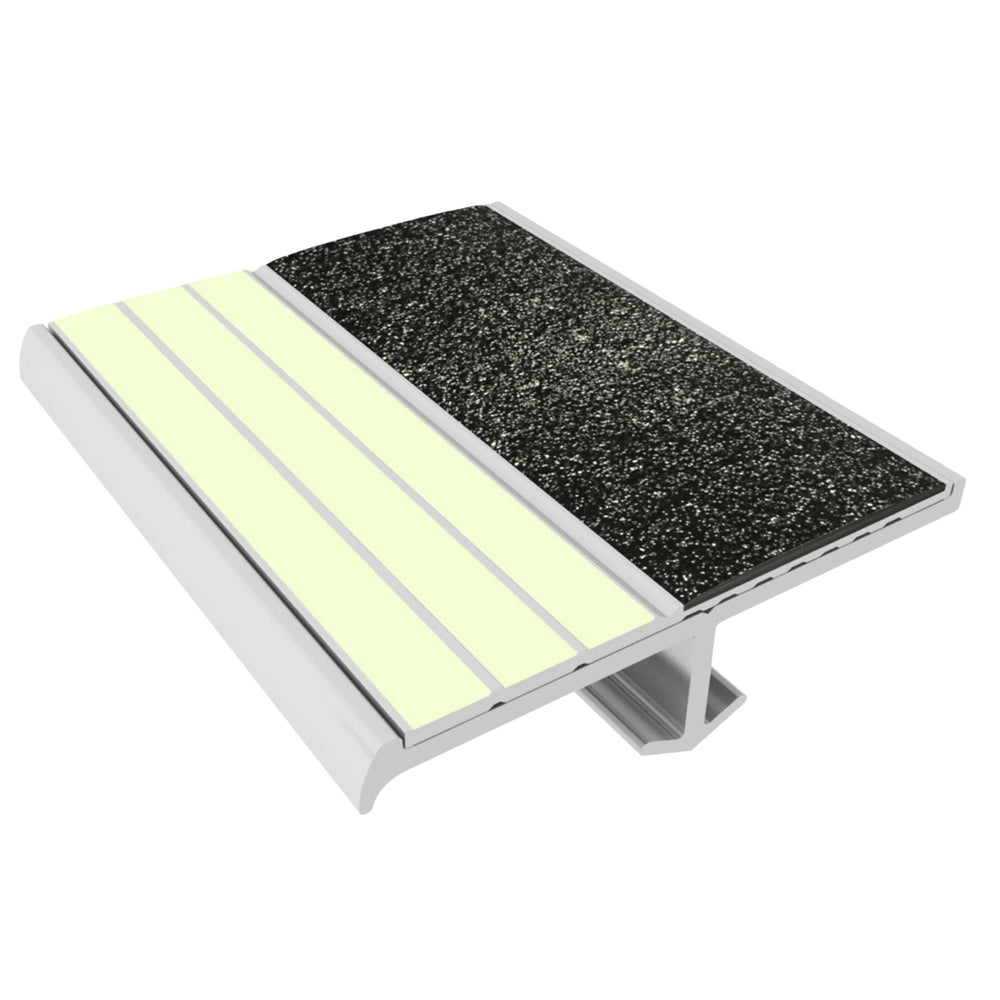

Black silicon-carbide anti-slip material combined with three Ecoglo® photoluminescent step-edge strips. A versatile high-contrast configuration for commercial, institutional and concrete stair projects.
View S4071 Black →
Gray silicon-carbide anti-slip material combined with three Ecoglo® photoluminescent step-edge strips. The neutral gray configuration can coordinate with a wide range of concrete and architectural finishes.
View S4061 Gray →
High-visibility yellow silicon-carbide anti-slip material combined with three Ecoglo® photoluminescent step-edge strips for projects where stronger visible stair-edge contrast is desired.
View S4051 Yellow →Ecoglo® photoluminescent cast-in-place profiles are intended to be coordinated during construction rather than treated as an after-the-fact surface retrofit.
The profile is positioned as part of the concrete stair installation and is incorporated into the stair while the concrete is wet.
Manufacturer information identifies applications including conventional concrete stairs, concrete-filled steel-pan stairs and precast concrete stairs. :contentReference[oaicite:3]{index=3}
For applicable series, inserts may be supplied attached or unattached. Unattached inserts can be installed later in the construction process using the manufacturer-specified adhesive.
Architects and concrete contractors should confirm exact profile placement, dimensions, lengths and installation requirements from the current series data sheet before concrete placement.
Photoluminescent material absorbs energy from suitable ambient illumination and releases visible light when normal lighting is reduced.
Ecoglo cast-in-place profiles combine photoluminescent step-edge material with a durable anti-slip component.
Installation into wet concrete allows the stair-edge profile to be coordinated as part of the new stair construction.
Photoluminescent step-edge visibility does not require wiring, batteries or an electrical connection at the stair nosing.
Cast-in-place stair nosing is commonly considered during the design and construction of new concrete stairs in commercial, institutional, transportation and public-sector environments. Project requirements should be confirmed for each application.
Interior concrete exit stairways and other project-specific egress applications.
New concrete pedestrian stairs in parking garages and multi-level parking structures.
Rail, subway, airport and other high-traffic transportation projects.
Academic, educational and institutional concrete stair construction.
Healthcare and institutional concrete stair projects.
Civic, municipal and public-sector construction projects.
High-occupancy concrete stairways and public assembly facilities.
Office, hospitality, mixed-use and large commercial developments.
This collection focuses specifically on photoluminescent cast-in-place stair nosings. Projects requiring traction and stair-edge color contrast without a luminous component can instead use Ecoglo® non-photoluminescent cast-in-place profiles.
Explore Non-Photoluminescent Cast-In-Place Stair Nosings →Select the required Ecoglo S-series profile during design and coordinate stair geometry, stair-edge position, photoluminescent requirements and project documentation.
Confirm series, lengths, quantities and profile placement before concrete stair work begins to reduce field changes and coordination issues.
Use the exact Ecoglo series and model number when preparing estimates, purchase orders, RFQs and project submittals.
Photoluminescent egress requirements vary according to building type, jurisdiction, stair configuration, applicable code edition and the specific product configuration.
Do not assume that every Ecoglo profile or model has identical listings or is suitable for every project.
Architects, contractors, consultants and building officials should review the current manufacturer data sheet, listing documentation, project specifications and requirements of the applicable authority having jurisdiction before final product selection.
It is a stair-edge profile incorporating photoluminescent and anti-slip components that is designed to be integrated into new concrete stair construction.
Manufacturer information identifies applications including conventional concrete stairs, concrete-filled steel-pan stairs and precast concrete stairs.
Within the series shown on this page, E30 configurations generally use three photoluminescent strips while E40 configurations use five, providing a larger luminous component.
The primary families shown here are S10-E30, S10-E40, S2-E30, S2-E40, S3-G, S4-E30 and S4-E40.
Current S4-E30 models shown here include S4071 Black, S4061 Gray and S4051 Yellow anti-slip configurations.
S4-E30 is a cast-in-place profile intended to be incorporated during wet concrete construction rather than treated as a surface-mounted retrofit after the concrete has cured.
Manufacturer information for the primary cast-in-place series identifies standard 8-foot and 10-foot lengths, with cut-to-length options available for applicable profiles.
For applicable series, Ecoglo states that inserts may be supplied attached or unattached. Unattached inserts may be installed later using the manufacturer-recommended adhesive system.
No electrical connection or battery is required at the nosing. The photoluminescent material uses suitable ambient illumination as its charging source.
Yes, where a project does not require a photoluminescent component. Ecoglo also offers non-photoluminescent cast-in-place profiles designed to provide traction and stair-edge contrast.
Compare S10, S2, S3 and S4 photoluminescent cast-in-place stair-nosing profiles, or contact us for help with series selection, quantities, lengths, technical documents and project-specific requirements.
