ComposiGrip

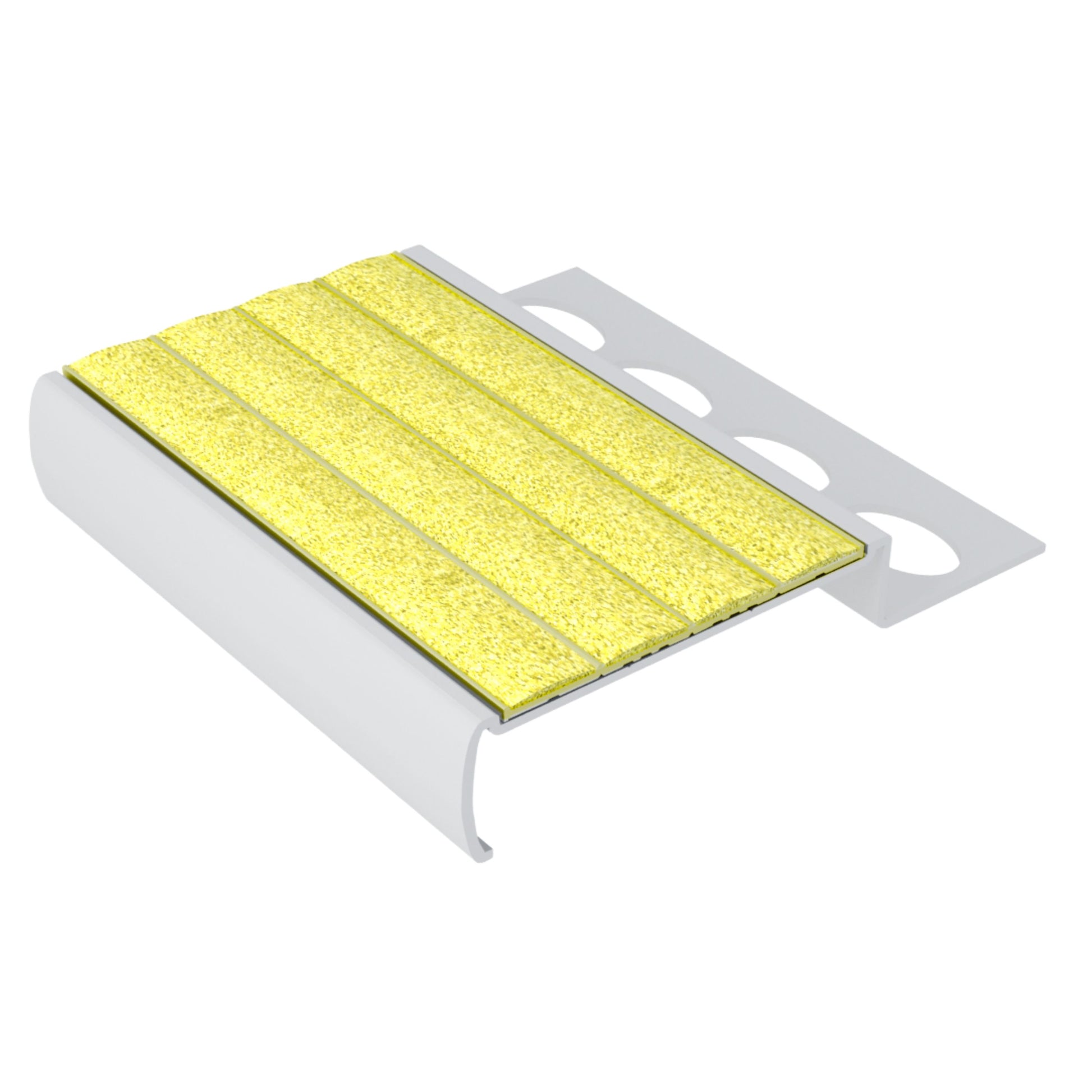

M4150.10 Yellow Non-Slip Tile Nosing, 8 FT | Ecoglo® M4.10-N30 Series
Couldn't load pickup availability
M4170.10 Black Non-Slip Tile Nosing, 8 FT | Ecoglo® M4.10-N30 Series
Ecoglo® M4170.10 is the black anti-slip model in the M4.10-N30 tile stair-nosing series.
Designed specifically for tiled stair installations using tile approximately 3/16" to 11/32" thick (5 mm to 8.5 mm), it combines a durable anodized-aluminum stair-nosing profile with hard-wearing black silicon-carbide anti-slip material for strong traction and clear stair-edge contrast.
Heavy-Duty Black Non-Slip Tile Stair Nosing for Commercial & Government Projects
Ecoglo® M4170.10 is designed for specification-driven tiled stair installations where architects, flooring contractors, general contractors, government contractors and facility owners require durable stair-edge protection and reliable slip resistance.
The M4.10-N30 profile combines a refined anodized-aluminum stair nosing with hard-wearing silicon-carbide non-slip strips that are integrally bonded to the aluminum substrate.
The contrasting black anti-slip surface helps define the stair edge under normal lighting conditions while the anodized-aluminum profile provides a durable architectural finish suitable for demanding interior and exterior stair environments.
Engineered for Tile
The M4.10 profile is designed for tiled stairs using tile approximately 3/16"–11/32", or 5–8.5 mm, thick.
Black Silicon-Carbide Anti-Slip
M4170.10 uses hard-wearing silicon-carbide non-slip material integrally bonded to the aluminum substrate for durable traction.
Color-Contrast Step Edge
The contrasting non-slip material helps provide clear stair-edge definition under normal lighting conditions.
M4170.10 Black Technical Specifications
Model-specific technical information helps architects, flooring contractors, estimators and project managers accurately identify the product during specification, submittal, procurement and installation.
| Specification | Ecoglo® M4170.10 Black |
|---|---|
| Manufacturer | Ecoglo® |
| Model | M4170.10 |
| Series | M4.10-N30 Non-Slip Tile Nosing |
| Photoluminescent | No |
| Anti-Slip Color | Black |
| Application | Tiled stair installations |
| Compatible Tile Thickness | 3/16"–11/32" 5 mm–8.5 mm |
| Horizontal Surface | Approx. 2.0" / 51 mm |
| Front Profile Height | Approx. 0.8" / 19.5 mm |
| Tile Profile Height | Approx. 0.4" / 10 mm |
| Overall Profile Width | Approx. 3.4" / 86.9 mm |
| Standard Length | 8 ft |
| Base Material | Anodized aluminum |
| Standard Finish | Clear anodized aluminum |
| Optional Finishes | Black, Light Bronze and Dark Bronze anodized finishes available at additional cost |
| Anti-Slip Material | Hard-wearing silicon-carbide non-slip material integrally bonded to the aluminum substrate |
| Insert Supply | Inserts are supplied unattached |
| Insert Installation | Inserts are installed into the aluminum nosing using premium polyurethane adhesive; adhesive is not included |
| Slip-Resistance Testing | Manufacturer documentation references UL 410 and AS/NZS 4586-1999 |
| Manufacturer Datasheet Listing | Manufacturer datasheet displays UL 1994 and ULC 572 listing marks. M4.10-N30 is presented by Ecoglo® as a non-slip, non-photoluminescent tile-nosing series. |
| Country of Manufacture | Made in the USA |
Download the Ecoglo® M4.10-N30 Technical Data Sheet
Architects, specification consultants, flooring contractors, general contractors and government contractors can include the manufacturer technical data sheet in project submittals, product reviews and close-out documentation.
M4.10-N30 Performance References
Ecoglo® manufacturer documentation references testing related to slip resistance, UV stability, weather exposure, abrasion resistance, washability and flammability for the M4.10-N30 series.
Slip Resistance
Manufacturer documentation references UL 410 and AS/NZS 4586-1999 slip-resistance testing.
UV & Weather Stability
Manufacturer testing references ASTM G155-04 accelerated UV exposure, ASTM B117 salt-spray resistance and ASTM C1026 freeze-thaw testing.
Abrasion Resistance
Manufacturer documentation references ASTM D1242, ASTM F510 and JIS H8682-1 abrasion-resistance methods.
Washability
Manufacturer documentation references ASTM D4828 practical washability testing.
Flammability
Manufacturer documentation references ASTM E162, ASTM D635 and FAA AC 23.2 horizontal burn testing.
Made in the USA
The M4.10-N30 manufacturer technical data identifies the product as Made in the USA and describes the aluminum-based product as recyclable.
Engineered for High-Traffic Commercial & Institutional Stairs
Ecoglo® designed the M4.10-N30 profile for tiled stair environments where repeated foot traffic, slip resistance, abrasion resistance and durable stair-edge definition are important.
- Hard-wearing silicon-carbide non-slip material is integrally bonded to the aluminum substrate.
- Anodized-aluminum construction provides a durable architectural stair-edge profile.
- The anodized finish helps resist corrosion and abrasion.
- Contrasting black non-slip material provides clear step-edge definition.
- Manufacturer documentation references accelerated UV/weathering, salt-spray and freeze-thaw testing.
- Suitable for consideration in indoor and outdoor tiled stair applications.
- Aluminum-based construction is recyclable.
- No photoluminescent material or electrical components are used for stair-edge visibility.
How Ecoglo® M4170.10 Can Help Reduce Avoidable Project Delays
On large commercial, institutional and government projects, incorrect stair-nosing selection, incompatible tile thickness, missing technical information or installation that differs from approved project documents can contribute to RFIs, rejected submittals, deficiencies and rework.
M4170.10 provides the project team with a traceable manufacturer → series → model → technical data → approved detail → installation path that can simplify product verification.
1 Specify the Exact Product
Identify the product as Ecoglo® M4170.10 Black Non-Slip Tile Nosing, M4.10-N30 Series rather than using only a generic phrase such as “black stair nosing.”
2 Confirm It Is Non-Photoluminescent
M4170.10 is a non-slip, non-photoluminescent stair nosing. If the project requires luminous or photoluminescent egress markings, confirm the correct Ecoglo® luminous product before procurement.
3 Verify Tile Thickness
Confirm that the finished tile thickness falls within the M4.10 profile range of approximately 5 mm to 8.5 mm.
4 Include the Manufacturer Data Sheet
Submit the M4.10-N30 technical data before installation so the architect, flooring consultant and contractor can review dimensions, materials and manufacturer performance information.
5 Match the Approved Stair Detail
Confirm profile orientation, tile interface, black insert placement and stair-edge position against approved drawings and current manufacturer instructions.
6 Retain Documentation for Close-Out
Keep the approved product submittal, M4170.10 model information and manufacturer documentation available for consultant and inspection review.
M4170.10 Black Inspection-Readiness Checklist
- Manufacturer identified as Ecoglo®
- Exact model identified as M4170.10
- M4.10-N30 Series identified on submittal
- Black anti-slip configuration confirmed
- Product identified as non-photoluminescent
- Finished tile thickness verified within 5–8.5 mm range
- Manufacturer M4.10-N30 technical data sheet included
- Architectural stair detail reviewed
- Slip-resistance requirements reviewed
- Installation adhesive and insert installation coordinated
- Installed stair-edge position matches approved documents
- Applicable project specifications reviewed
- Locally applicable building requirements reviewed
- Reviewing-authority requirements addressed before close-out
M4170.10 Black for U.S. Commercial & Government Stair Projects
Ecoglo® M4170.10 is intended for U.S. tiled-stair projects where architects, general contractors, flooring contractors, government contractors and facility owners require durable stair-edge protection and a hard-wearing non-slip surface.
For U.S. Architects & Specifiers
- Specify Ecoglo® M4170.10 by exact model number
- Identify M4.10-N30 as the non-slip series
- Confirm the specified black anti-slip configuration
- Confirm compatibility with the specified tile
- Include current manufacturer technical documentation
- Do not specify M4170.10 where a photoluminescent product is required
For U.S. General & Government Contractors
- Confirm contract and approved-product requirements
- Verify M4170.10 Black before procurement
- Coordinate quantities and 8-ft lengths
- Submit manufacturer data before installation
- Retain product documentation for inspection and close-out
- Confirm locally applicable stair and slip-resistance requirements
U.S. Non-Slip Stair Nosing Project Considerations
M4170.10 for Large U.S. Commercial & Institutional Projects
- Federal government facilities
- State and municipal buildings
- Courthouses and public buildings
- Airports and transportation facilities
- Rail and transit stations
- Hospitals and healthcare facilities
- Universities, colleges and schools
- Office buildings and corporate campuses
- Hotels and hospitality projects
- Retail and mixed-use developments
- Stadiums and arenas
- Institutional buildings
- Public infrastructure projects
M4170.10 Black for Canadian Commercial & Government Stair Projects
Ecoglo® M4170.10 can be considered for Canadian tiled-stair projects where architects, flooring contractors, general contractors, government contractors and facility owners require durable stair-edge protection and a hard-wearing non-slip surface.
Canadian project requirements vary by province, territory, municipality, building type, project specification and applicable reviewing authority. The project team should verify the requirements in force at the actual project location.
For Canadian Architects & Specifiers
- Specify Ecoglo® M4170.10 by exact model number
- Identify M4.10-N30 as the non-slip series
- Confirm the black anti-slip configuration
- Confirm compatibility with specified tile thickness
- Include current manufacturer technical documentation
- Do not specify M4170.10 where photoluminescent marking is required
For Canadian General & Government Contractors
- Confirm tender and approved-product requirements
- Verify M4170.10 Black before procurement
- Coordinate quantities and 8-ft lengths
- Submit manufacturer documentation before installation
- Retain approved documentation for inspection and close-out
- Confirm applicable provincial or territorial requirements
Canadian Non-Slip Stair Nosing Project Considerations
M4170.10 for Large Canadian Commercial & Institutional Projects
- Government of Canada facilities
- Provincial government buildings
- Municipal and public buildings
- Courthouses
- Airports and transportation facilities
- Rail and transit stations
- Hospitals and healthcare facilities
- Universities, colleges and schools
- Office buildings
- Hotels and hospitality projects
- Retail and mixed-use developments
- Stadiums and arenas
- Institutional facilities
- Public infrastructure projects
Architect & Specification Support
Specifying M4170.10 by exact model number helps coordinate tile thickness, stair geometry, anti-slip color, aluminum finish and installation details before material reaches the jobsite.
Manufacturer: Ecoglo®
Product: M4170.10 Black Non-Slip Tile Stair Nosing, M4.10-N30 Series.
Product Type: Non-photoluminescent tile stair nosing with integrated non-slip inserts.
Application: Tiled stair installations using finished tile approximately 3/16"–11/32" (5–8.5 mm) thick.
Anti-Slip Color: Black.
Material: Anodized-aluminum tile stair-nosing profile incorporating integrally bonded silicon-carbide non-slip material.
Standard Finish: Clear anodized aluminum.
Length: 8 ft.
Installation: Install in accordance with current Ecoglo® manufacturer instructions, approved project documents and applicable requirements.
Submittals: Provide current product data, applicable testing documentation, architectural details and installation information required by the contract documents.
Specifier Note: This suggested language should be reviewed and edited by the project architect or specification consultant for the specific application and jurisdiction.
Compare Ecoglo® M4.10-N30 Non-Slip Tile Nosing Colors
Each M4.10-N30 anti-slip color has its own product listing so architects, contractors and procurement teams can identify the exact stair-nosing model required.
M4170.10 Black
Black silicon-carbide non-slip tile stair nosing for durable traction and contrasting stair-edge definition.
View M4170.10 Black →
M4160.10 Gray
M4.10-N30 tile stair nosing with hard-wearing gray silicon-carbide non-slip material.
View M4160.10 Gray →
M4150.10 Yellow
M4.10-N30 tile stair nosing with high-visibility yellow silicon-carbide non-slip material.
Currently ViewingFrequently Asked Questions About Ecoglo® M4170.10 Black
What is Ecoglo® M4170.10?
Ecoglo® M4170.10 is the black anti-slip model in the M4.10-N30 non-slip tile stair-nosing series. It combines an anodized-aluminum tile profile with integrally bonded black silicon-carbide non-slip material.
Is M4170.10 photoluminescent?
No. M4170.10 is a non-photoluminescent M4.10-N30 non-slip tile nosing. It provides slip resistance and color-contrast stair-edge definition under normal lighting, but it does not glow when lighting is removed.
What tile thickness fits M4170.10?
The Ecoglo® M4.10 profile is designed for tile approximately 3/16" to 11/32" thick, equivalent to approximately 5 mm to 8.5 mm.
What length is M4170.10?
The M4.10-N30 tile stair-nosing profile is available in 8-foot lengths.
Is M4170.10 slip resistant?
Yes. M4170.10 incorporates hard-wearing silicon-carbide non-slip material integrally bonded to the aluminum substrate. Manufacturer documentation references UL 410 and AS/NZS 4586-1999 slip-resistance testing.
Can M4170.10 be used outdoors?
Ecoglo® identifies the M4.10-N30 series for indoor and outdoor use and references accelerated UV/weathering, salt-spray and freeze-thaw testing in its technical documentation.
Are the anti-slip inserts supplied attached?
No. Ecoglo® states that the inserts are supplied unattached. The inserts are installed into the aluminum nosing using premium polyurethane adhesive, which is not included.
Is M4170.10 suitable where luminous egress markings are required?
M4170.10 itself is not photoluminescent. Where the project requires a luminous or photoluminescent egress stair-edge marking, specify an Ecoglo® product designed and documented for that application.
Can M4170.10 help reduce inspection or submittal delays?
It can help reduce avoidable project questions when the exact model is specified, tile thickness is confirmed, manufacturer technical data is submitted before installation and the installed product matches approved project documents. Final approval remains with the applicable reviewing authority.
Is M4170.10 suitable for U.S. government projects?
M4170.10 can be considered for U.S. government, commercial and institutional tiled-stair projects where the specification requires an appropriate non-slip stair nosing. Contract and jurisdictional requirements should be verified before procurement.
Is M4170.10 suitable for Canadian government projects?
M4170.10 can be considered for Canadian federal, provincial, municipal, commercial and institutional tiled-stair projects where an appropriate non-slip stair nosing is specified. Tender and jurisdictional requirements should be verified before procurement.
What other M4.10-N30 colors are available?
Other M4.10-N30 models include M4160.10 Gray and M4150.10 Yellow .
Specifying M4170.10 Black for a U.S. Commercial or Government Project?
Confirm tile thickness, architectural stair detail, required quantity, slip-resistance requirements and project specifications before releasing material for construction.
Specifying M4170.10 Black for a Canadian Commercial or Government Project?
Confirm tile thickness, architectural stair detail, required quantity, applicable provincial or territorial requirements and project specifications before releasing material for construction.
