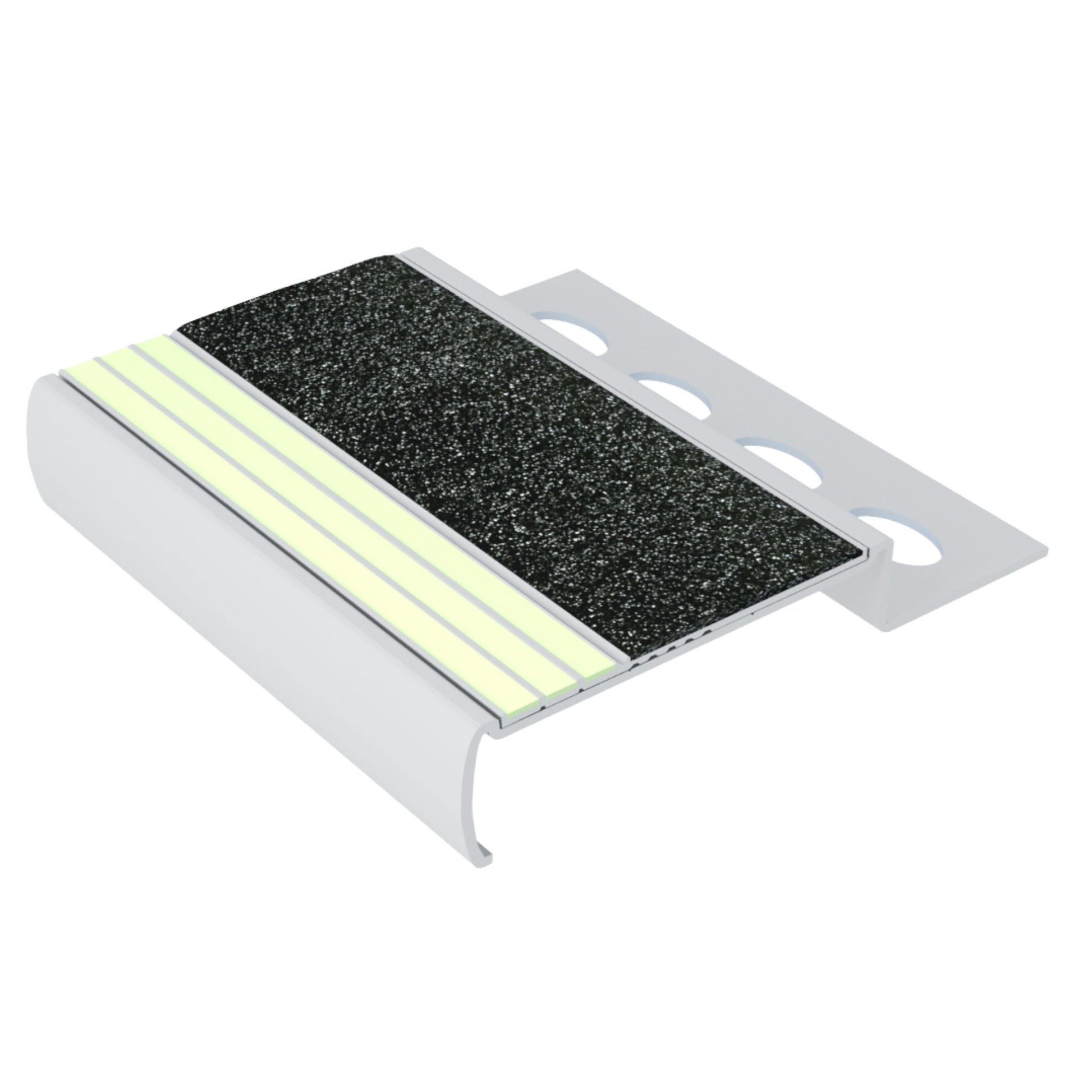

M4171.10 Black Photoluminescent Tile Nosing | Ecoglo® M4.10-E30 Series
Ecoglo® M4171.10 is the black anti-slip model in the M4.10-E30 photoluminescent tile stair-nosing series, engineered for tiled stair installations using tile approximately 3/16" to 11/32" thick (5 mm to 8.5 mm). It combines photoluminescent step-edge visibility, anodized aluminum construction and black silicon-carbide slip resistance for commercial, institutional and government projects in the United States and Canada.
Photoluminescent Tile Stair Nosing for Commercial & Government Projects
Ecoglo® M4171.10 is designed for tiled stair installations where architects, general contractors, government contractors and facility owners require durable step-edge definition, slip resistance and passive luminous visibility in one integrated stair-nosing profile.
Unlike temporary tape or field-applied markings, M4171.10 is part of a purpose-built anodized-aluminum system. The photoluminescent section defines the leading edge of the stair, while the black silicon-carbide insert provides durable traction and visual contrast.
The photoluminescent material stores energy from suitable ambient light and releases that energy as visible light when normal lighting is reduced. No electrical connection is required at the stair nosing itself.
Engineered for Tile
The M4.10 profile is designed for tiled stairs using tile approximately 3/16"–11/32" or 5–8.5 mm thick.
Black Silicon-Carbide Anti-Slip
M4171.10 uses hard-wearing black silicon-carbide non-slip material integrally bonded to the aluminum substrate.
Passive Emergency Visibility
Photoluminescent technology helps maintain visible step-edge definition when normal lighting conditions are reduced.

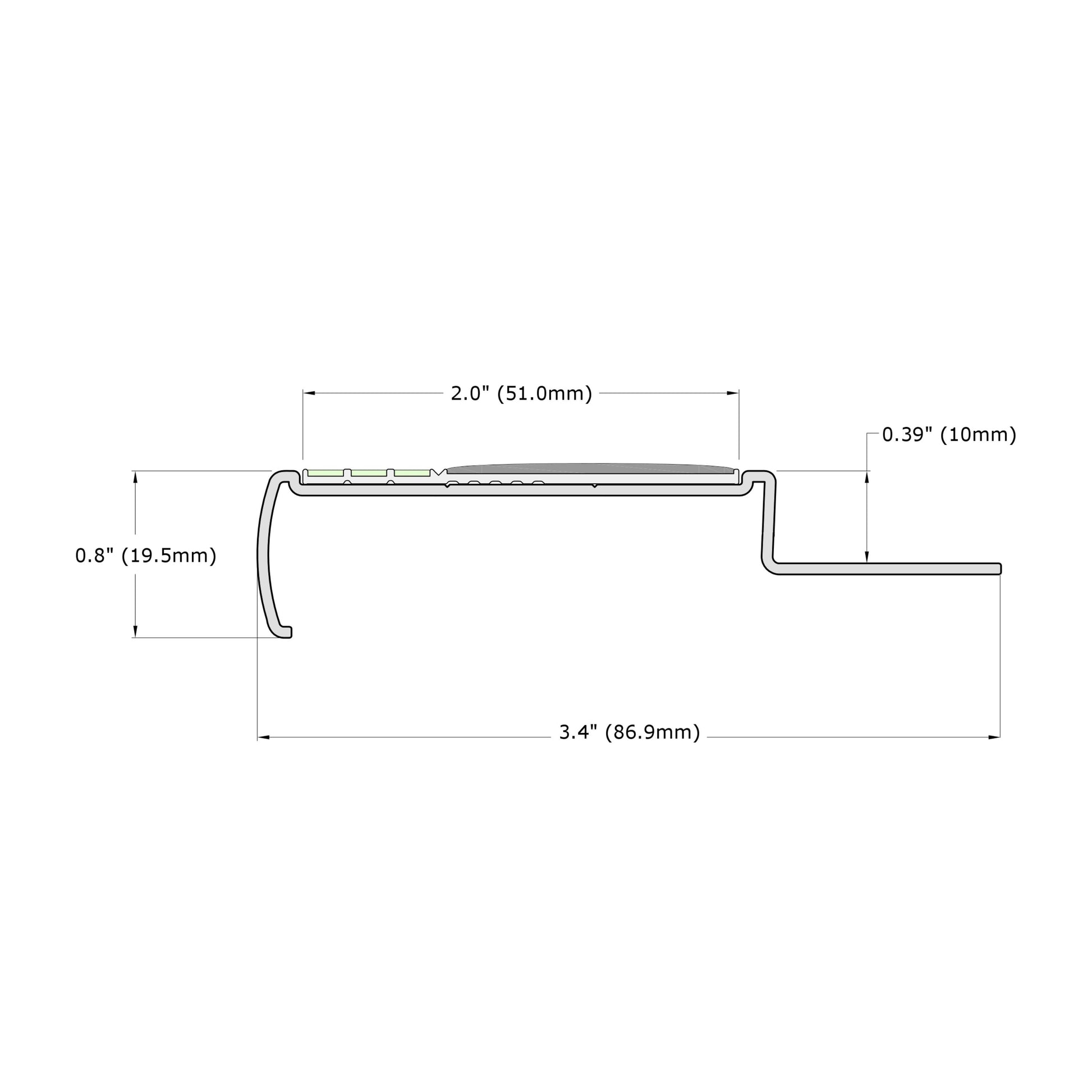

M4171.10 Technical Specifications
Model-specific technical information helps architects, estimators, flooring contractors and project managers accurately identify the product during specifications, submittals, procurement and inspection.
| Specification | Ecoglo® M4171.10 Black |
|---|---|
| Manufacturer | Ecoglo® |
| Model | M4171.10 |
| Series | M4.10-E30 Photoluminescent Tile Nosing |
| Anti-Slip Color | Black |
| Application | Tiled stair installations |
| Compatible Tile Thickness | 3/16"–11/32" 5 mm–8.5 mm |
| Horizontal Surface | Approx. 2.0" / 51 mm |
| Front Profile Height | Approx. 0.8" / 19.5 mm |
| Tile Profile Height | Approx. 0.4" / 10 mm |
| Overall Profile Width | Approx. 3.4" / 86.9 mm |
| Standard Length | 8 ft |
| Base Material | Anodized aluminum |
| Standard Finish | Clear anodized aluminum |
| Optional Finishes | Light Bronze and Dark Bronze anodized finishes available at additional cost |
| Anti-Slip Material | Hard-wearing silicon-carbide non-slip material integrally bonded to the aluminum substrate |
| Insert Supply | Inserts are supplied unattached |
| Insert Installation | Installed into the aluminum nosing using premium polyurethane adhesive; adhesive is not included |
| Manufacturer Listing | UL 1994 and ULC 572 listed |
| Country of Manufacture | Made in the USA |
Download the Ecoglo® M4.10-E30 Technical Data Sheet
Architects, specification consultants, general contractors and government contractors can use the manufacturer data sheet as part of the project submittal, product review and close-out documentation.
Engineered for High-Traffic Commercial & Institutional Stairways
Ecoglo® designed the M4.10-E30 profile for demanding tiled stair environments where pedestrian traffic, abrasion, cleaning and long-term stair-edge visibility are important.
- Raised ridges help protect the photoluminescent strips from abrasive wear.
- The ridged photoluminescent surface contributes additional slip resistance while remaining cleanable.
- Hard-wearing silicon-carbide non-slip material is integrally bonded to the aluminum substrate.
- The anodized finish helps resist corrosion and abrasive wear.
- Ecoglo® reports accelerated UV and weathering testing for indoor and outdoor use.
- Manufacturer information reports less than visually detectable performance loss following 6,000 hours of UV exposure testing.
- The product is aluminum based and recyclable.
- The photoluminescent system uses no electrical energy at the stair nosing.
How Ecoglo® M4171.10 Can Help Reduce Avoidable Inspection Delays
For large commercial, government and institutional projects, unresolved stair-finish and life-safety details can create far more cost than the nosing itself. Incorrect product selection, incompatible tile profiles, missing documentation or installation that does not match the approved drawings can result in RFIs, deficiencies, rework and delayed close-out.
Ecoglo® M4171.10 gives the project team a traceable manufacturer → series → model → technical data → approved detail → installation path that can help simplify review and verification.
1Specify the Exact Model
Identify the product as Ecoglo® M4171.10 Black, M4.10-E30 Series instead of using a generic phrase such as “photoluminescent stair nosing.”
2Verify Tile Thickness Before Ordering
Confirm that the finished tile thickness falls within the manufacturer’s published M4.10 range of approximately 5 mm to 8.5 mm.
3Include the Manufacturer Data Sheet in the Submittal
Provide the M4.10-E30 data sheet before installation so the exact product, dimensions, materials and published listing information can be reviewed.
4Resolve Luminous Egress Requirements Early
Where luminous egress path markings are required, coordinate the product with the architect, code consultant and Authority Having Jurisdiction before tiled stairs are completed.
5Match Installation to the Approved Detail
Confirm product orientation, tile interface, insert placement and stair-edge location against approved project documents and current manufacturer instructions.
6Keep Documentation Ready for Final Review
Retain the approved product submittal, model number and technical documentation so inspectors and consultants can readily identify the installed system.
M4171.10 Inspection-Readiness Checklist
- Manufacturer identified as Ecoglo®
- Exact model identified as M4171.10
- M4.10-E30 Series identified on submittal
- Black anti-slip insert confirmed
- Finished tile thickness verified within 5–8.5 mm range
- Manufacturer M4.10-E30 data sheet included
- Architectural stair detail reviewed
- Applicable listing documentation reviewed
- Photoluminescent charging illumination addressed where required
- Installation method confirmed before field installation
- Installed stair-edge location matches approved project documents
- Placement remains consistent throughout the applicable enclosure
- Locally adopted building and fire codes reviewed
- AHJ-specific requirements addressed before final inspection
U.S. Luminous Egress Path Marking Considerations
For U.S. projects, architects, code consultants and contractors should confirm the locally adopted building and fire codes and determine whether luminous egress path marking requirements apply to the specific building.
Code Note: Applicability depends on occupancy, building height, local amendments, adopted code edition and project-specific conditions.
Ecoglo® M4171.10 for Canadian Commercial & Government Projects
Ecoglo® M4171.10 can be considered for Canadian tiled-stair projects requiring durable photoluminescent step-edge visibility and anti-slip protection. The M4.10-E30 technical data identifies ULC 572 listing in addition to UL 1994 listing.
Canadian requirements depend on provincial or territorial adoption and local regulations. Architects, code consultants and contractors should verify the requirements in force for the project location.
For Canadian Architects & Specifiers
- Identify Ecoglo® M4171.10 by exact model number
- Confirm M4.10 compatibility with the specified tile
- Specify the black anti-slip configuration
- Include current manufacturer technical documentation
- Coordinate applicable building and fire requirements
- Resolve stair-edge details before tender or construction
For Canadian General & Government Contractors
- Confirm tender and approved-product requirements
- Submit technical documentation before purchasing
- Coordinate quantities and 8-ft lengths
- Verify the specified black model before procurement
- Retain approved documentation for inspection
- Coordinate any AHJ questions before final close-out
Designed for Large Commercial, Institutional & Government Stair Projects
M4171.10 is particularly relevant where construction teams need a repeatable, identifiable and specification-ready tile stair nosing that can be coordinated across multiple stairways or project phases.
- Federal government buildings
- State and provincial government facilities
- Municipal and public buildings
- Courthouses and public-safety facilities
- Airports and transportation facilities
- Rail and transit stations
- Hospitals and healthcare facilities
- Universities, colleges and schools
- High-rise commercial buildings
- Office towers and corporate campuses
- Hotels and hospitality projects
- Stadiums and arenas
- Convention and public-assembly facilities
- Institutional facilities
- Large commercial developments
- Public infrastructure projects
Architect & Specification Support
Specifying the exact stair-nosing model during design development helps coordinate tile thickness, stair geometry, anti-slip color, luminous marking requirements and finish before material reaches the jobsite.
Manufacturer: Ecoglo®
Product: M4171.10 Black Photoluminescent Tile Stair Nosing, M4.10-E30 Series.
Application: Tiled stair installations using finished tile approximately 3/16"–11/32" (5–8.5 mm) thick.
Material: Anodized-aluminum tile stair-nosing profile incorporating photoluminescent step-edge material and integrally bonded black silicon-carbide non-slip material.
Standard Finish: Clear anodized aluminum.
Length: 8 ft.
Listing: Manufacturer identifies the M4.10-E30 Series as UL 1994 and ULC 572 listed.
Installation: Install in accordance with current Ecoglo® instructions, approved project documents and applicable code requirements.
Submittals: Provide current product data, applicable listing documentation, architectural details and installation information required by the contract documents.
Specifier Note: This sample language should be reviewed and edited by the project architect or specification consultant.
Compare Other Ecoglo® M4.10-E30 Tile Nosing Colors
Each M4.10-E30 anti-slip color has its own product listing, making it easier for architects, contractors and procurement teams to identify and specify the exact model required.
M4171.10 Black
Black silicon-carbide anti-slip insert with Ecoglo® photoluminescent step-edge marking. Designed for tile approximately 5–8.5 mm thick.
Currently Viewing
M4161.10 Gray
M4.10-E30 photoluminescent tile stair nosing with gray silicon-carbide anti-slip insert.
View M4161.10 Gray →
M4151.10 Yellow
M4.10-E30 photoluminescent tile stair nosing with yellow silicon-carbide anti-slip insert.
View M4151.10 Yellow →Frequently Asked Questions About Ecoglo® M4171.10
What is Ecoglo® M4171.10?
Ecoglo® M4171.10 is the black anti-slip model in the M4.10-E30 photoluminescent tile stair-nosing series.
What tile thickness fits M4171.10?
The Ecoglo® M4.10 profile is designed for tile approximately 3/16" to 11/32" thick, or about 5 mm to 8.5 mm.
What length is Ecoglo® M4171.10?
The M4.10-E30 tile stair-nosing series is available in 8-foot lengths.
Is M4171.10 slip resistant?
Yes. M4171.10 uses hard-wearing black silicon-carbide anti-slip material integrally bonded to the aluminum substrate.
Does M4171.10 require electricity?
No. The photoluminescent material does not require an electrical connection at the stair nosing.
Is Ecoglo® M4.10-E30 UL 1994 listed?
Yes. The manufacturer technical data identifies the series as UL 1994 and ULC 572 listed.
Can Ecoglo® M4171.10 help a project pass inspection faster?
M4171.10 can help reduce avoidable inspection and submittal delays when the exact product is selected early, tile thickness is verified, manufacturer documentation is submitted before installation and the completed work matches approved project documents.
What other M4.10-E30 colors are available?
Other M4.10-E30 color listings include M4161.10 Gray and M4151.10 Yellow.
Specifying M4171.10 for a Government or Large Commercial Project?
Confirm the tile thickness, architectural stair detail, required quantity and project specification before releasing material for construction. Early product verification can help reduce incorrect selections, RFIs, field changes, submittal questions and avoidable inspection delays.
