Ecoglo® G5001 Luminous Guidance 1" Wide Strip

Ecoglo® G5001 Luminous Guidance 1" Wide Strip

Regular price $23.10 CAD
Regular price Sale price $23.10 CAD
Sale Sold out
Shipping calculated at checkout.
Size (Width x Length)
Quantity

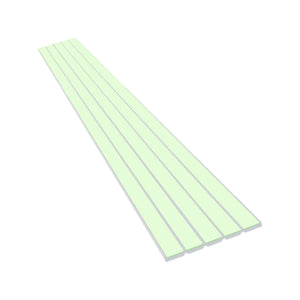

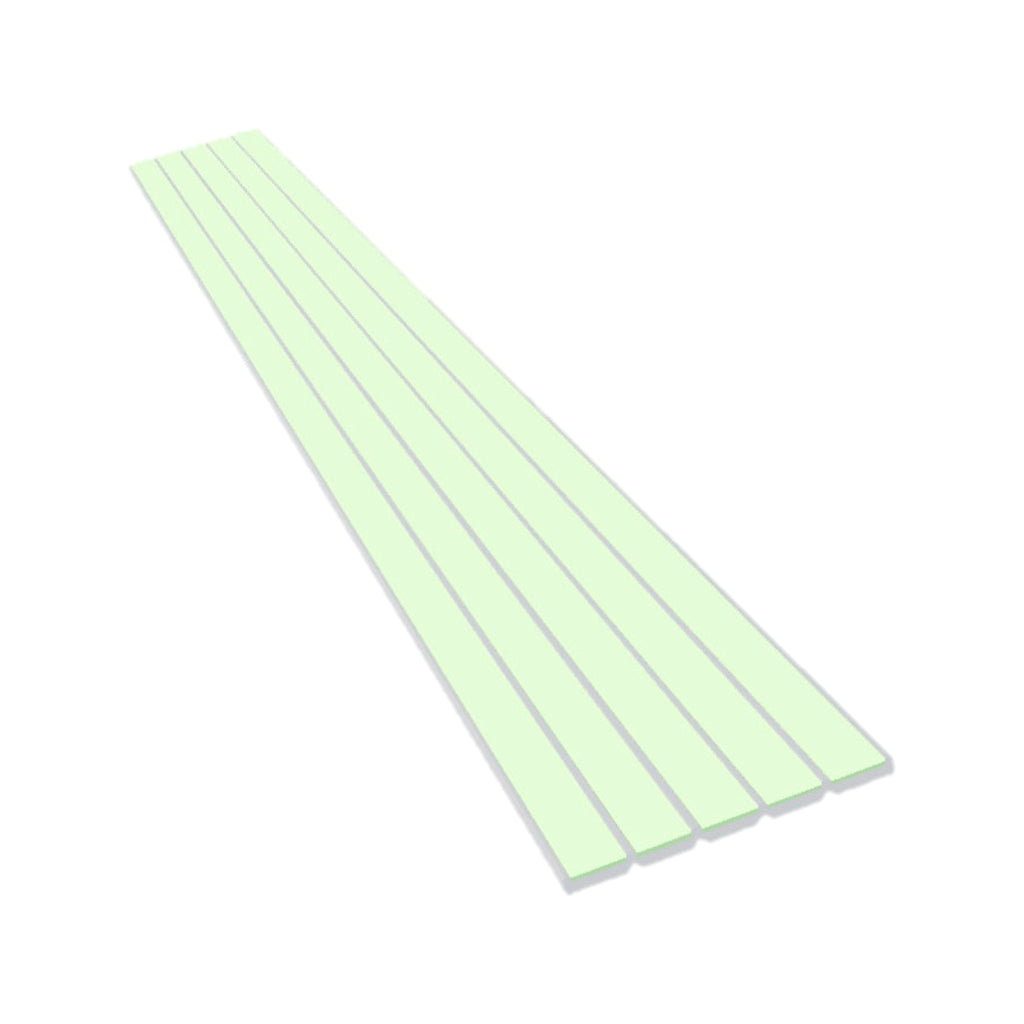

Ecoglo®'s G5001 Photoluminescent Guidance Strip is 1” wide and UL 1994 listed. It provides excellent perimeter visibility in all lighting conditions, charging quickly from natural or artificial light to glow for hours. Easy to install on walls or floors, this energy-free strip requires minimal maintenance. Ideal for areas needing luminous egress path markings, Ecoglo® offers top value and performance.

Product Information

  • Install using premium polyurethane adhesive.
  • Mechanical fasteners are optional but should not be used for outdoor installations.

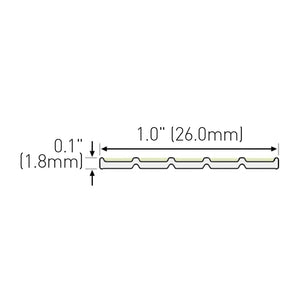

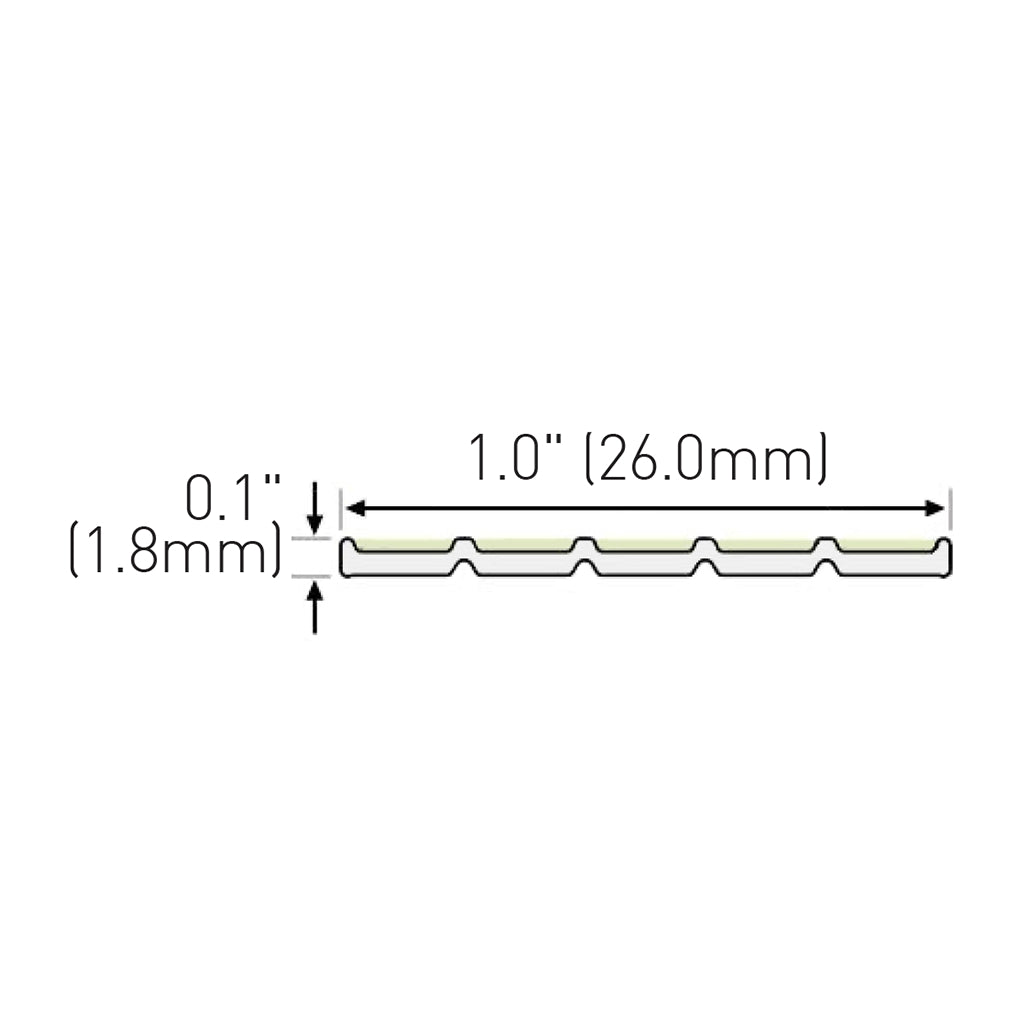

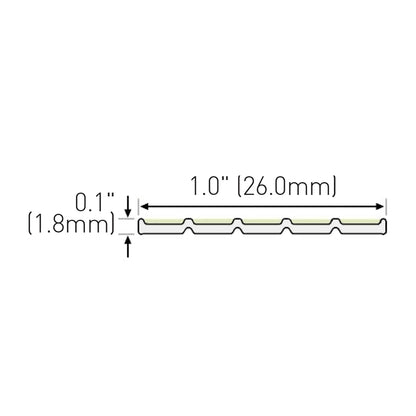

  • Width: 1” wide
  • Standard lengths: 8ft and 10ft.
  • Custom-cut lengths available with a ±1/8” tolerance. Contact us for custom sizes.
  • Weight: 0.056 lbs/ft.

Specs & Data Sheet


    Engineered for Durability
    Ecoglo's photoluminescent guidance strips are crafted using advanced technology for long-lasting durability. The unique ridge design protects against wear and tear, ensuring reliable performance over time.

    Installed Durability
    The rigid aluminum base distributes applied loads evenly, and premium polyurethane adhesive ensures strong, moisture-resistant bonding on smooth or textured surfaces.

    Indoor & Outdoor Use
    Tested for UV and weather resistance, Ecoglo’s strips retain performance after 6000 hours of exposure, equivalent to 30 years outdoors. The long-chain polymer used ensures UV resistance.

    Environmentally Friendly
    Ecoglo's guidance strips are energy-free, non-toxic, and made from recyclable materials, qualifying for LEED points with zero disposal costs at the end of their lifecycle.

    View full details

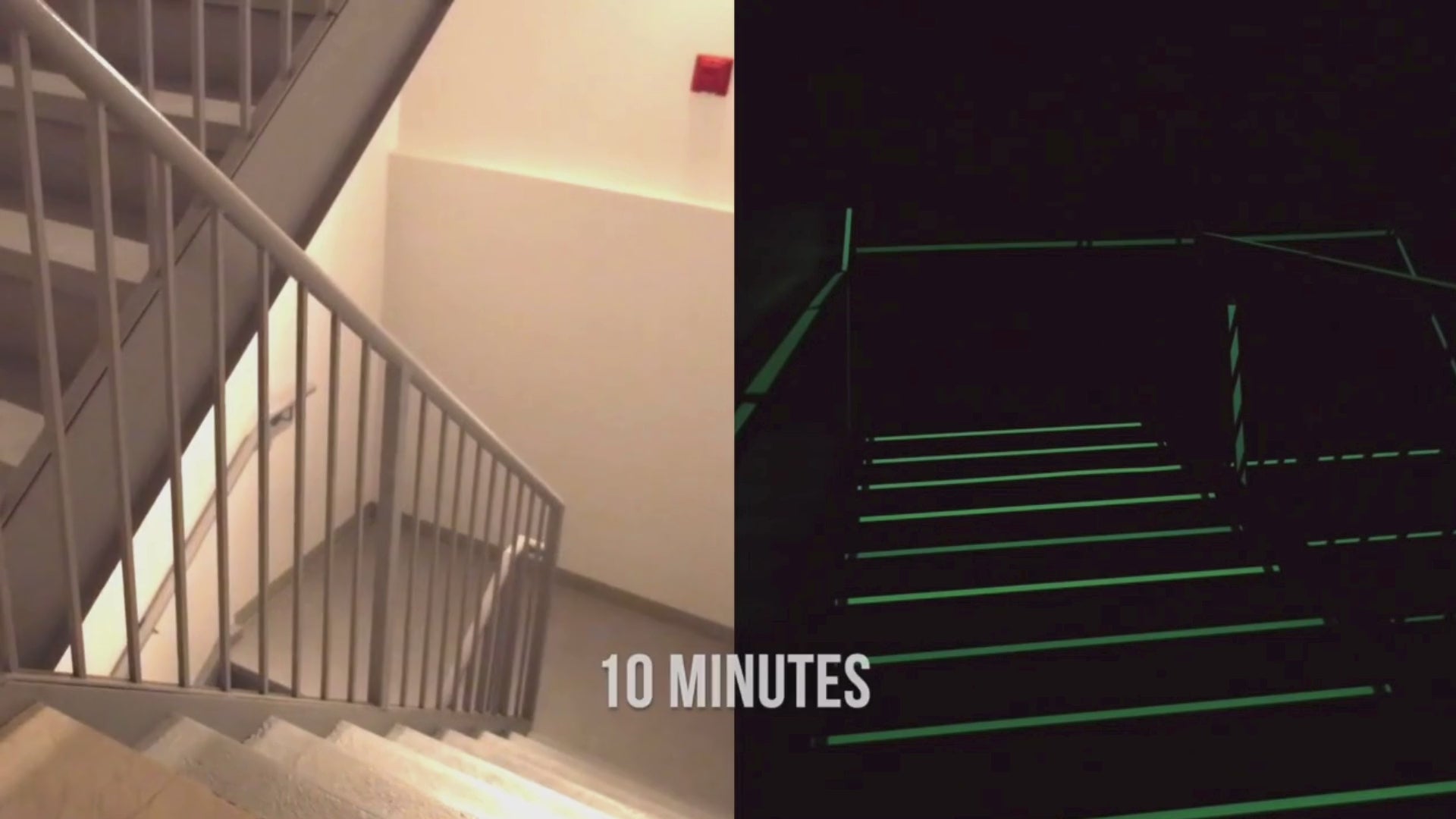

    color photo Before
    black and white After

    Customer Reviews

    Based on 2 reviews
    100%
    (2)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    N
    Nina Simmons
    Eliminated elderly falls

    “It’s a great product and we’re very happy with it. There were no falls by elderly visitors at our December(2010) commencement. It was worth every penny!”

    M
    Matthew J. Wilson
    Reduced to zero falls

    "During a major event last year we experienced approximately 26 slips and falls. This year, after installing an Ecoglo System, the figure for the same event was reduced to zero."

    Benefits of Ecoglo® Contrast Stair Strips

    Advanced photoluminescent and non-slip technology Ecoglo® products help people negotiate life's hazards.

    Ecoglo® VS Emergency Lights Comparison

    • Ecoglo G5001 Photoluminescent Guidance Strip Installation

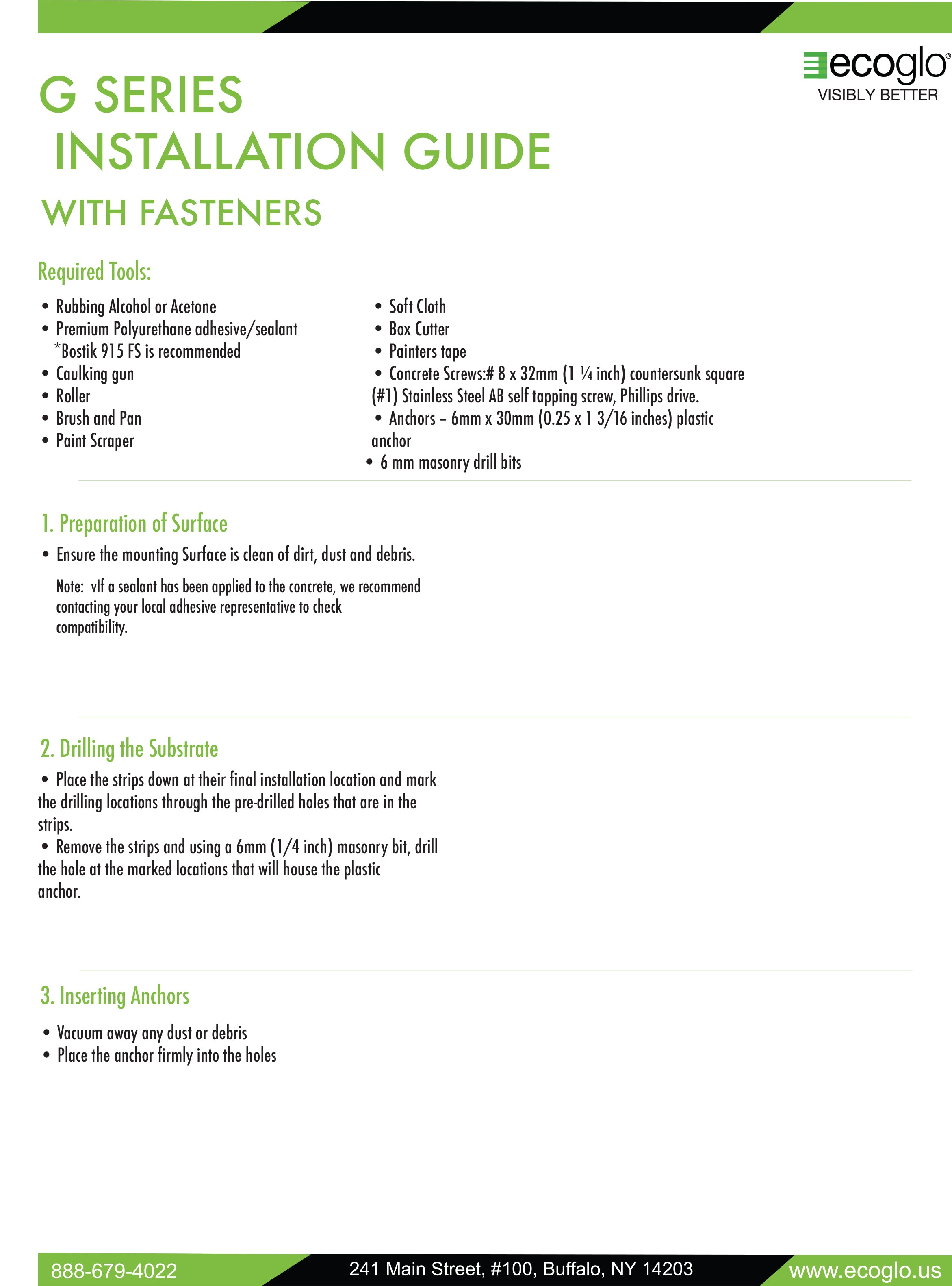

      INSTALLATION GUIDE

      Required Tools:
      • Rubbing Alcohol or Acetone
      • Premium Polyurethane adhesive/sealant
      *Bostik 915 FS is recommended
      • Caulking gun
      • Roller, Brush, Pan, Paint Scraper
      • Soft Cloth & a Box Cutter
      • Painters tape
      • Concrete Screws:# 8 x 32mm (1 ¼ inch) countersunk square
      (#1) Stainless Steel AB self tapping screw, Phillips drive.
      • Anchors – 6mm x 30mm (0.25 x 1 3/16 inches) plastic anchor
      • 6 mm masonry drill bits
      DOWNLOAD

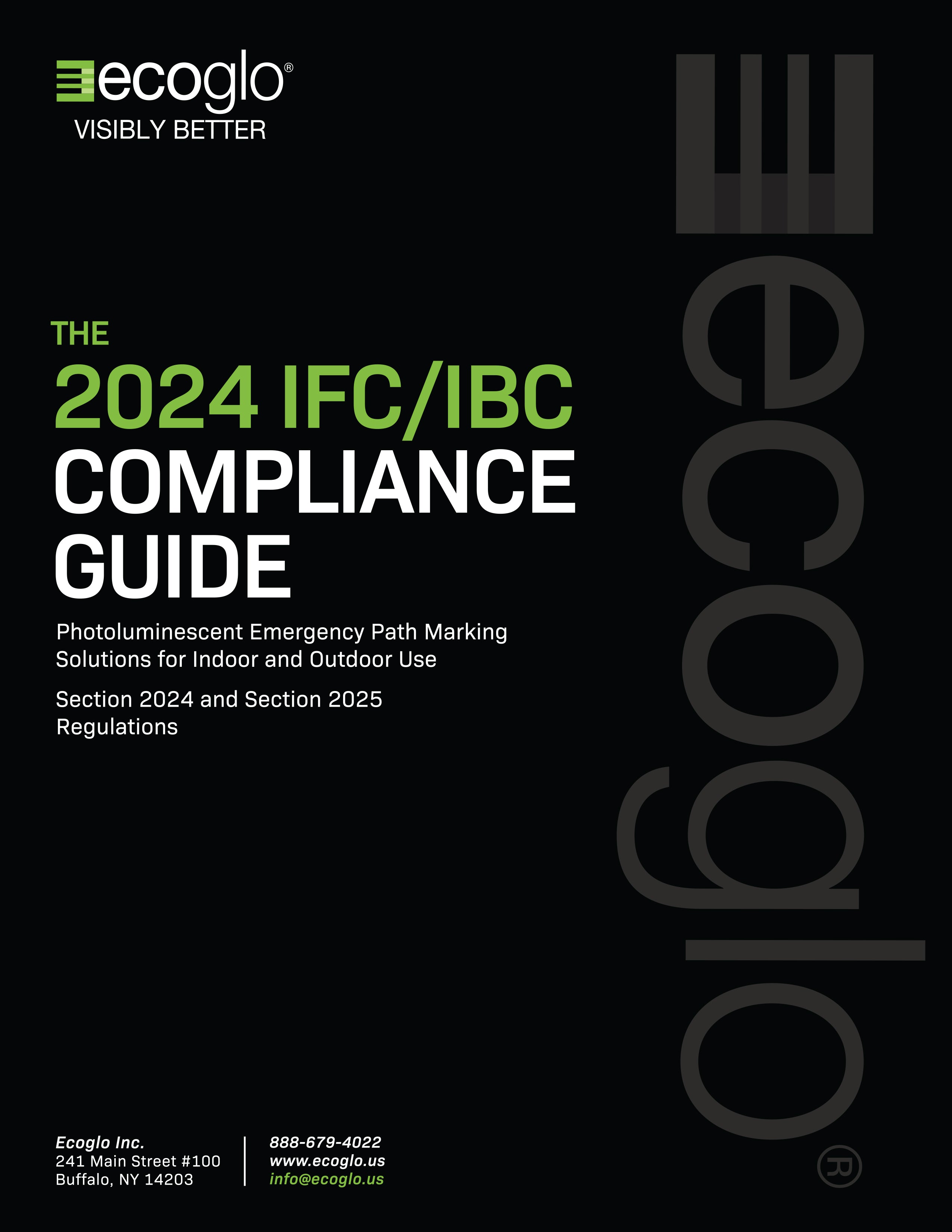

    • Ecoglo 2024-IFC-IBC-Compliance-Guide

      2024 COMPLIANCE GUIDE

      This document provides guidance to local building officials, architects, and contractors as to the requirements for
      luminous egress path markings in new and existing high-rise buildings, in accordance with the 2024 International Building and Fire codes.
      DOWNLOAD
    • Ecoglo G5001 Photoluminescent Guidance Strip Installation

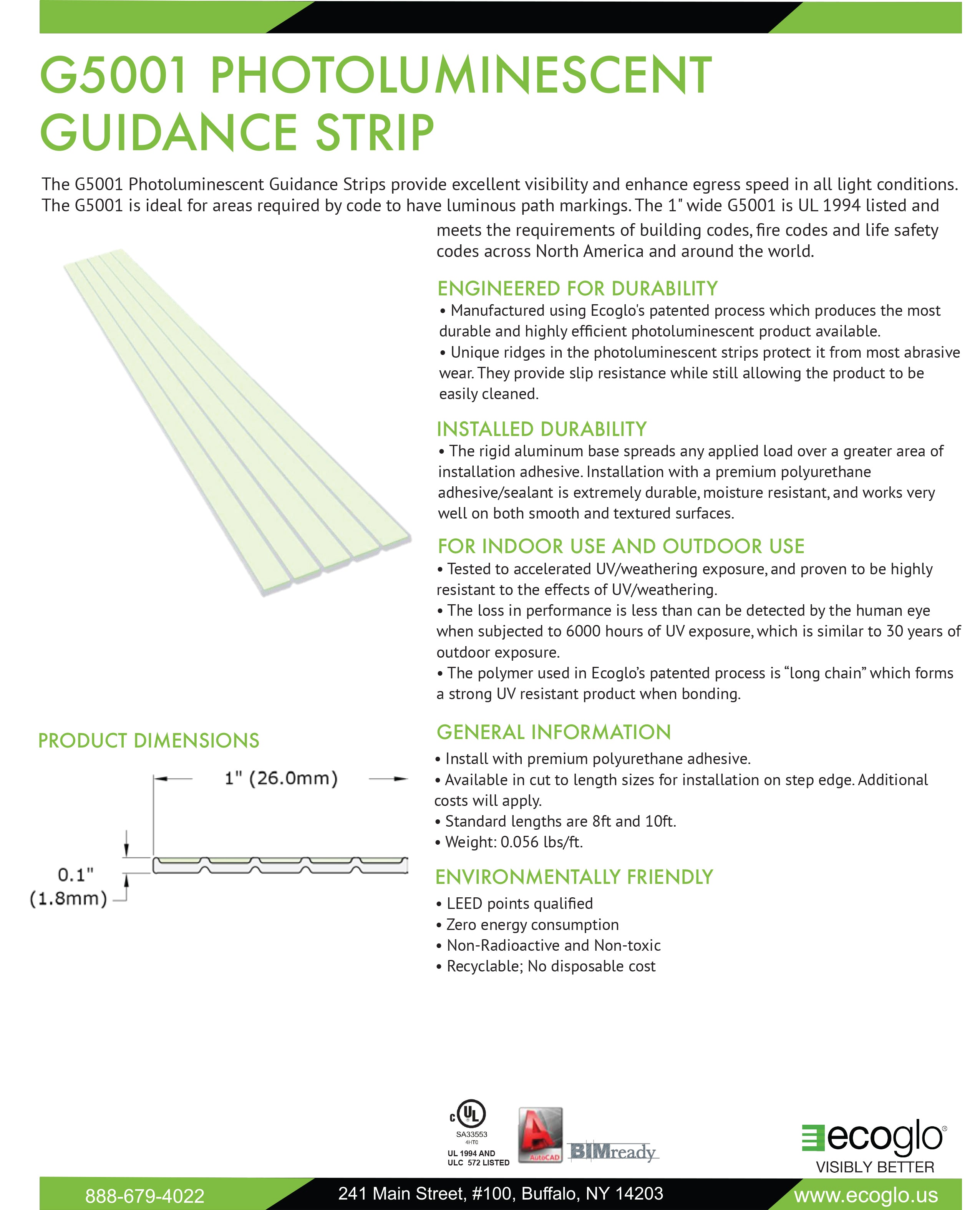

      G5001 DATA SHEET

      The G5001 Photoluminescent Guidance Strips provide excellent visibility and enhance egress speed in all light conditions.
      The G5001 is ideal for areas required by code to have luminous path markings.
      The 1" wide G5001 is UL 1994 listed and
      meets the requirements of building codes, fire codes and life safety codes across North America and around the world.
      DOWNLOAD

    Ecoglo® Stair Nosings and Contrast Strips

    More Information - Ecoglo® Stair Nosings and Contrast Strips

    General Information

    Install with premium polyurethane adhesive.

    • Option for mechanical fasteners.
    • Do not use mechanical fasteners when installing outdoors.
    • Available in cut to length sizes. (Tolerance +or- 1/8”) Standard lengths are 8ft and 10ft.
    • Weight: 0.1 lbs/ft.

    Engineered for Durability

    • Manufactured using Ecoglo®’s patented process which produces the most durable and highly efficient photoluminescent product available.
    • Unique ridges in the photoluminescent strips protect it from most abrasive wear. They provide slip resistance while still allowing the product to be easily cleaned.
    • The hard-wearing silicon carbide non-slip material is integrally bonded to the aluminum substrate. Thousands of people can walk on it with no signs of wear and tear.

    Superior Step Edge Safety

    • The color contrasting the non-slip material with advanced photoluminescent technology provides step edge visibility in all light conditions.
    • The unique ridges in the Ecoglo® photoluminescent strips and the integrated anti-slip contrast strips provide all-weather slip resistance.

    Installed Durability:

    • The rigid aluminum base spreads any applied load over a greater area of installation adhesive. Installation with a premium polyurethane adhesive/sealant is extremely durable, moisture resistant, and works very well on both smooth and textured surfaces.

    For Indoor Use and Outdoor Use:

    • Tested to accelerated UV/weathering exposure, and proven to be highly resistant to the effects of UV/weathering.
    • The loss in performance is less than can be detected by the human eye when subjected to 6000 hours of UV exposure, which is similar to 30 years of outdoor exposure.
    • The polymer used in Ecoglo’s patented process is “long chain” which forms a strong UV resistant product when bonding.

    Environmentally Friendly Photoluminescent Contrast Strip

    Commercial Project Support: Talk to Our Ecoglo® Photoluminescent Safety Experts

    Our team of engineers and
    Ecoglo® photoluminescent safety consultants are here to support your commercial projects — from product selection to code compliance and custom solutions.

    Whether you're working on new construction, retrofitting stairways, or ensuring your building meets egress safety regulations, we’ll help you find the right Ecoglo® solution. Get expert advice tailored to your project's needs and timelines.

    Why Contractors & Facilities Choose Ecoglo®

    "Discover what contractors, facility managers, and safety professionals are saying about Ecoglo® photoluminescent safety products.

    From code compliance to long-term performance, these real-world reviews highlight how Ecoglo® delivers reliable, low-maintenance solutions that enhance visibility and reduce slip-and-fall risks in every environment."

    1 of 2

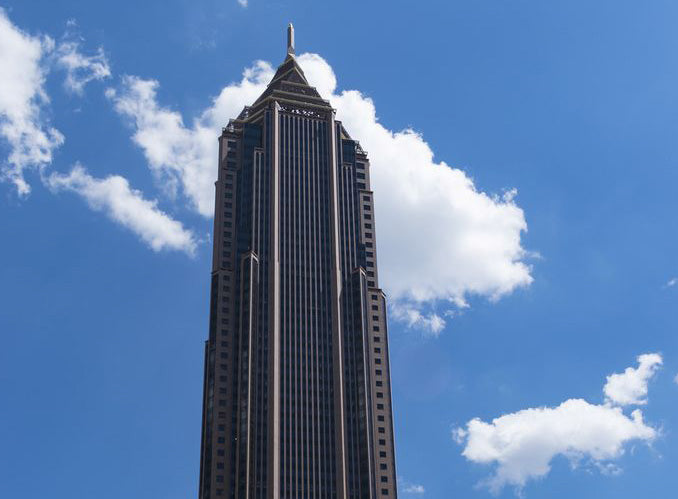

    • Ecoglo at BANK OF AMERICA PLAZA

      Bank of America Plaza features Ecoglo®’s complete emergency egress system, including step-edge, handrail, and perimeter markings, plus emergency door indicators, directional signs, and floor ID signs.

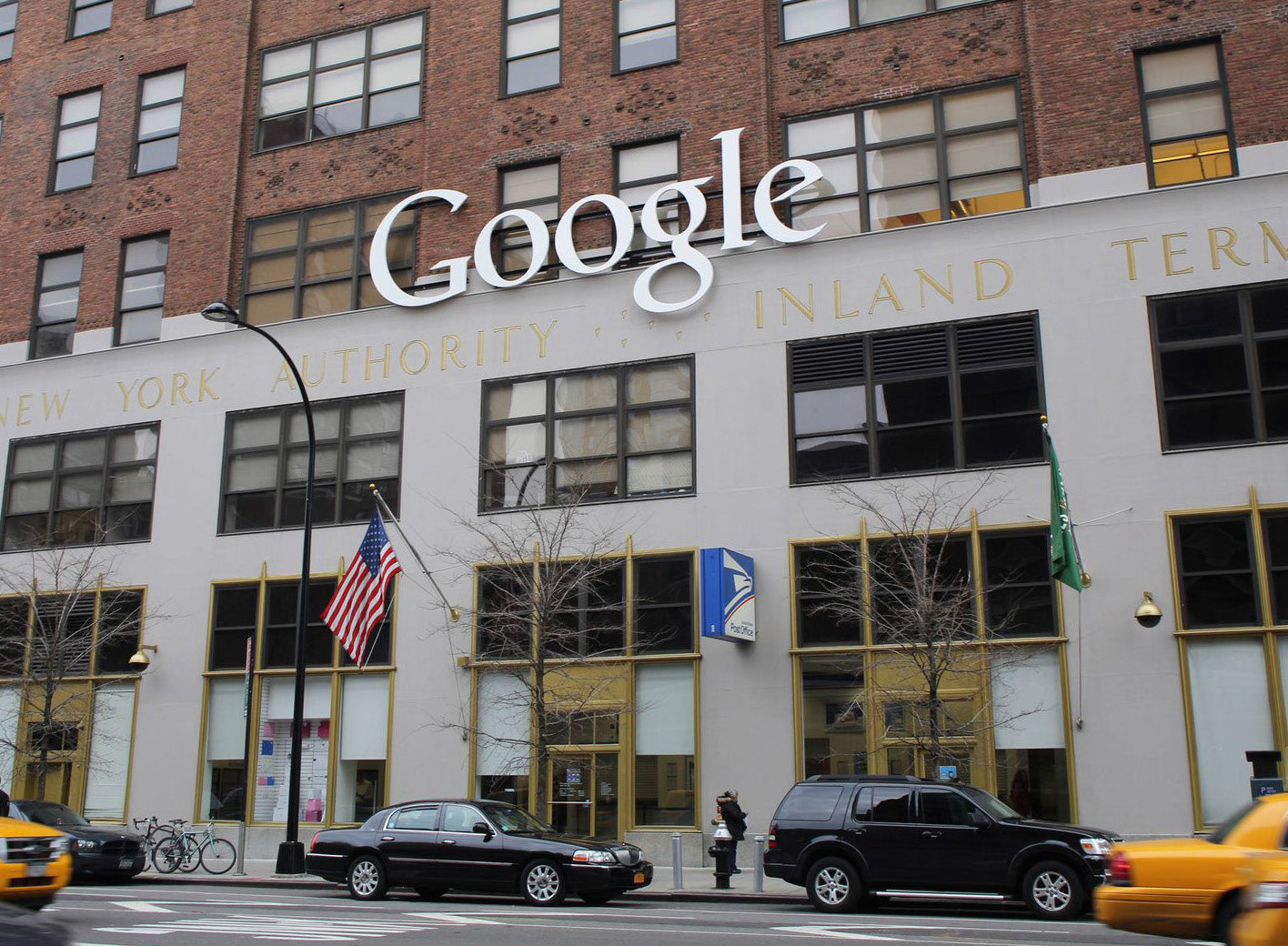

    • Ecoglo GOOGLE NYC HEADQUARTERS

      Ecoglo® installed a complete egress pathmarking system with included handrail marking, perimeter marking, obstruction
      markings and Ecoglo®’s stair nosing.

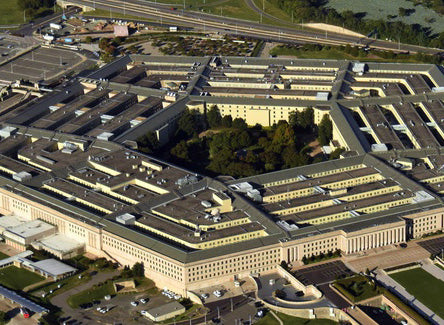

    • Ecoglo at THE PENTAGON

      Ecoglo® Products installed include UL 924 listed exit signs, photoluminescent directional signs and photoluminescent
      pathmarking strips developed specifically for The Pentagon.

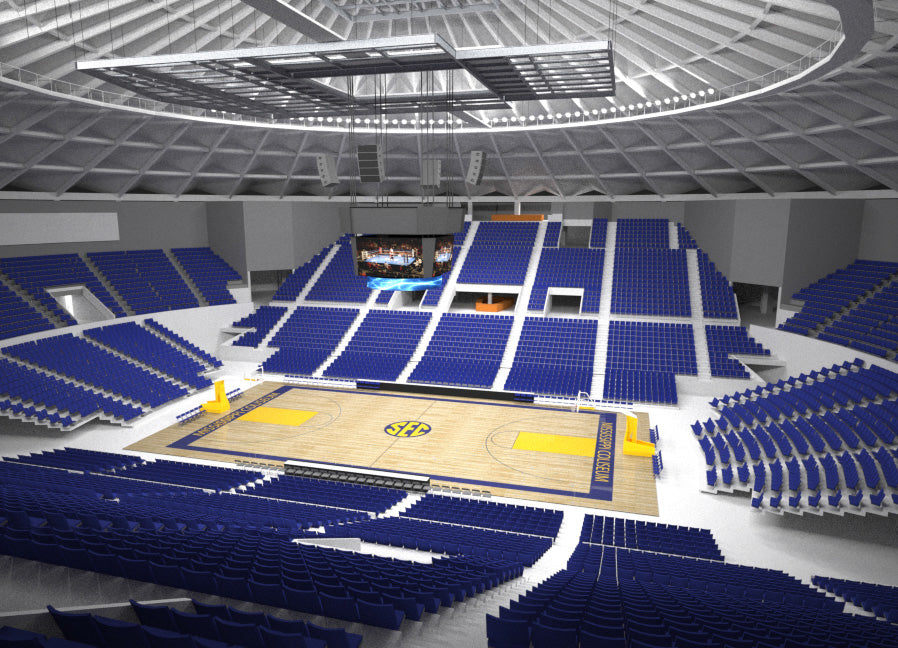

    • Ecoglo at MISSISSIPPI COLISEUM

      The 6,500-seat Mississippi Coliseum in Jackson features Ecoglo®’s luminous handrail and step-edge markings to reduce trip and fall risks during major events.

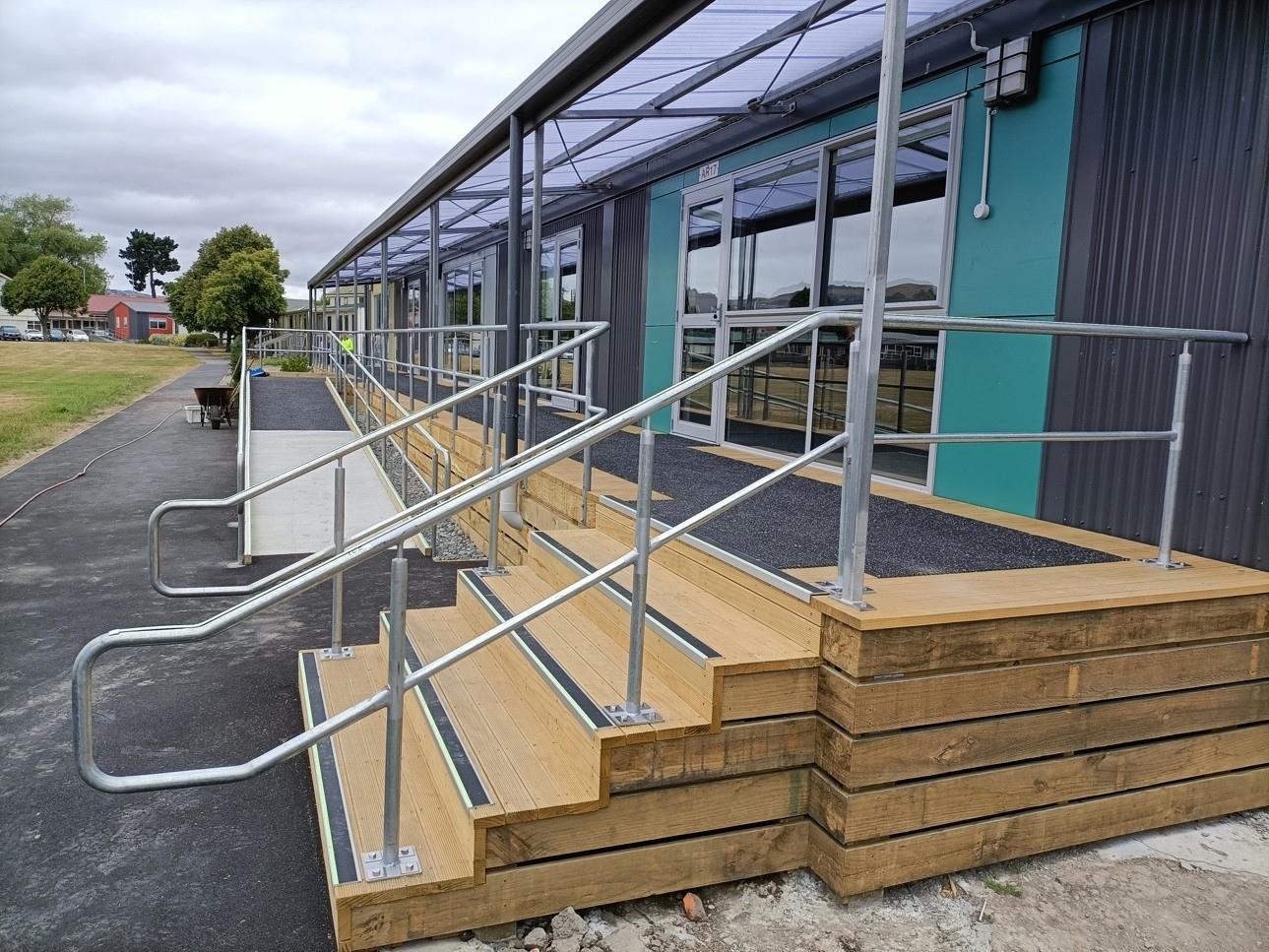

    photo luminescent stair edge markers on school steps

    Ecoglo®

    Schools & Universities

    Emergency egress, code compliance.

    Boost stair safety in schools with
    Ecoglo®’s glow-in-the-dark contrast strips. Designed for high-traffic areas, they provide a non-slip grip and visible step edges—even during power outages. Ideal for stairwells, exits, and hallways.

    Read more

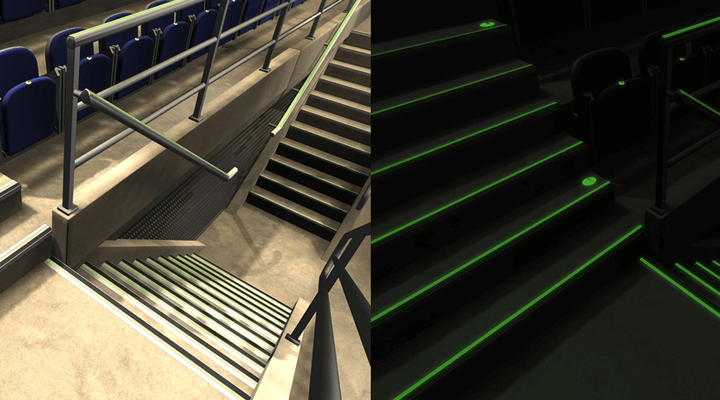

    Stadium glow in the dark stair strips

    Ecoglo®

    Stadiums

    Perfect for stadiums, these glow-in-the-dark strips enhance step visibility and traction in all lighting conditions. Durable and slip-resistant, they help guide crowds safely during power outages or low-light events.

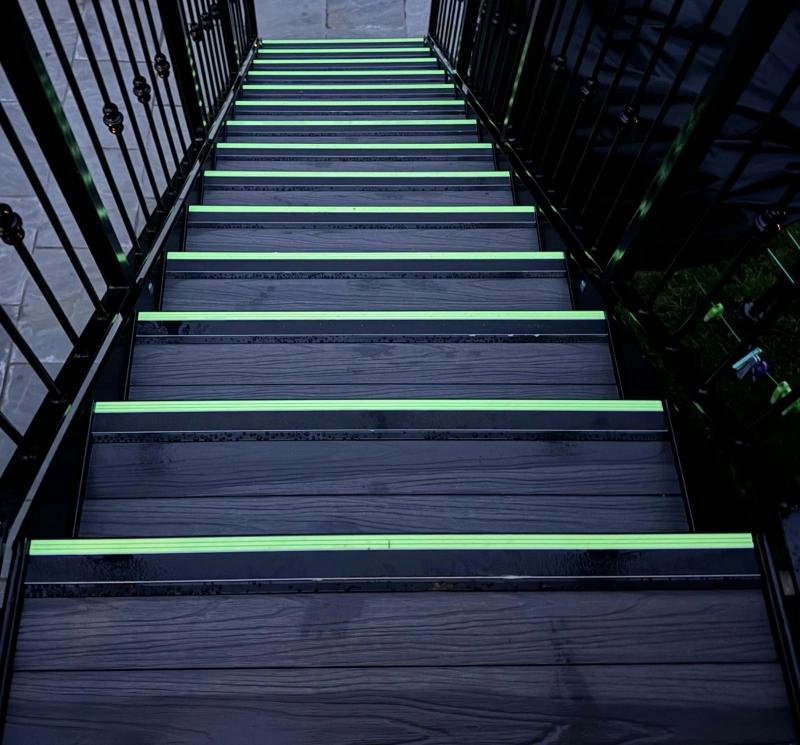

    Ecoglo Stair Nosing

    Ecoglo®

    Condo & Apartment Buildings

    Reduce insurance risk.

    Designed for condos and apartment buildings, these glow-in-the-dark strips improve stair safety by enhancing visibility and traction in all light conditions. Durable and low-maintenance, they help meet updated building and fire safety codes—ideal for stairwells, exits, and common areas.

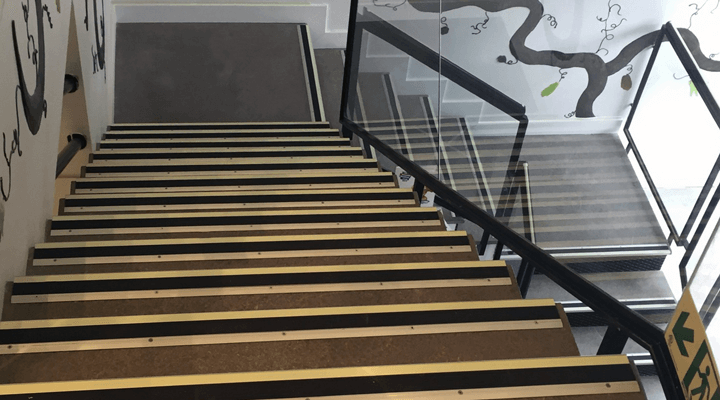

    luminiscent stair nosing strips for hotels

    Ecoglo®

    Hospitality & Lodging

    Guest safety during blackouts.

    Perfect for hotels and lodging facilities, these glow-in-the-dark strips enhance guest safety by improving stair visibility and slip resistance. Durable and discreet, they help meet updated building codes and provide reliable guidance during low light or emergency situations.

    Ecoglo® Photoluminescent Stair Strips

    FAQ

    How do Ecoglo® contrast strips work?

    Ecoglo®’s stair strips absorb ambient light—natural or artificial—and store energy. In the dark, they emit a bright glow for hours, marking step edges clearly without electricity or batteries.

    How long do the strips glow in darkness?

    Fully charged strips can glow for 6–12 hours, depending on light exposure. They recharge quickly under standard lighting conditions.

    Are these strips code-compliant?

    Yes, Ecoglo E20 strips meet IBC, IFC, OSHA, and local building codes for egress path markings and visibility in emergency conditions.

    Why are continuous lines of luminance important in evacuation paths?

    Continuous lines of photoluminescent markings along evacuation routes—especially on steps, handrails, and landings—help guide evacuees safely, even in darkness or smoke.

    Unlike overhead lighting, photoluminescent stairway guidance (SWG) systems are placed low and remain visible beneath smoke layers, ensuring people can clearly see where to place their hands and feet during an emergency.

    Can Ecoglo® contrast strips be used outdoors?

    Yes. Ecoglo® contrast strips are UV-resistant, weatherproof, and suitable for both indoor and outdoor applications—ideal for stairwells, ramps, loading docks, and fire exits.

    • Tested to accelerated UV/weathering exposure, and proven to be highly resistant to the effects of UV/weathering.
    • The loss in performance is less than can be detected by the human eye when subjected to 6000 hours of UV exposure, which is similar to 30 years of outdoor exposure.
    • The polymer used in Ecoglo®’s patented process is “long chain” which forms a strong UV resistant product when bonding.

    How is the installed durability?

    The rigid aluminum base spreads any applied load over a greater area of installation adhesive. Installation with a premium polyurethane adhesive/sealant is extremely durable, moisture resistant, and works very well on both smooth and textured surfaces.

    How are the Ecoglo® photoluminescent strips installed?

    Installation is simple: use adhesive (recommended for indoor use) or mechanical fasteners for extra durability outdoors or in high-traffic areas.

    Are the Ecoglo® luminiscent strips slip-resistant?

    Yes. Ecoglo® luminiscent strips feature high-traction ridges made of silicon carbide, bonded to an aluminum base for excellent slip resistance—even in wet or oily conditions.

    What makes Ecoglo® a leader in photoluminescent safety technology?

    Ecoglo® is a global innovator in photoluminescent stair edge marking and passive emergency lighting systems. With a proven track record—including installations in Olympic venues and major high-rise buildings across North America.

    Ecoglo® has led the way in developing reliable, code-compliant safety solutions. The company holds worldwide patents and trademarks, ensuring cutting-edge, protected technology.

    Ecoglo® continuous product development, code alignment, and close collaboration with distributors makes Ecoglo® a trusted choice for facilities aiming to improve emergency egress, reduce slip hazards, and meet stringent safety standards.

    What sizes are available?

    The standard width is 1½ inches (38mm), but other sizes may be available by request. Contact us for custom options or bulk orders.

    Where can Ecoglo® step edge contrast strips can be used?

    Ecoglo® Photoluminescent stair strips are perfect for:

    • Schools, universities, and daycares.
    • Hotels, stadiums, and shopping malls.
    • Factories, warehouses, and transit stations.
    • Apartments, condos, and government buildings.
    • Residential homes.

    Anywhere you need to improve the visibility and safety of steps.
