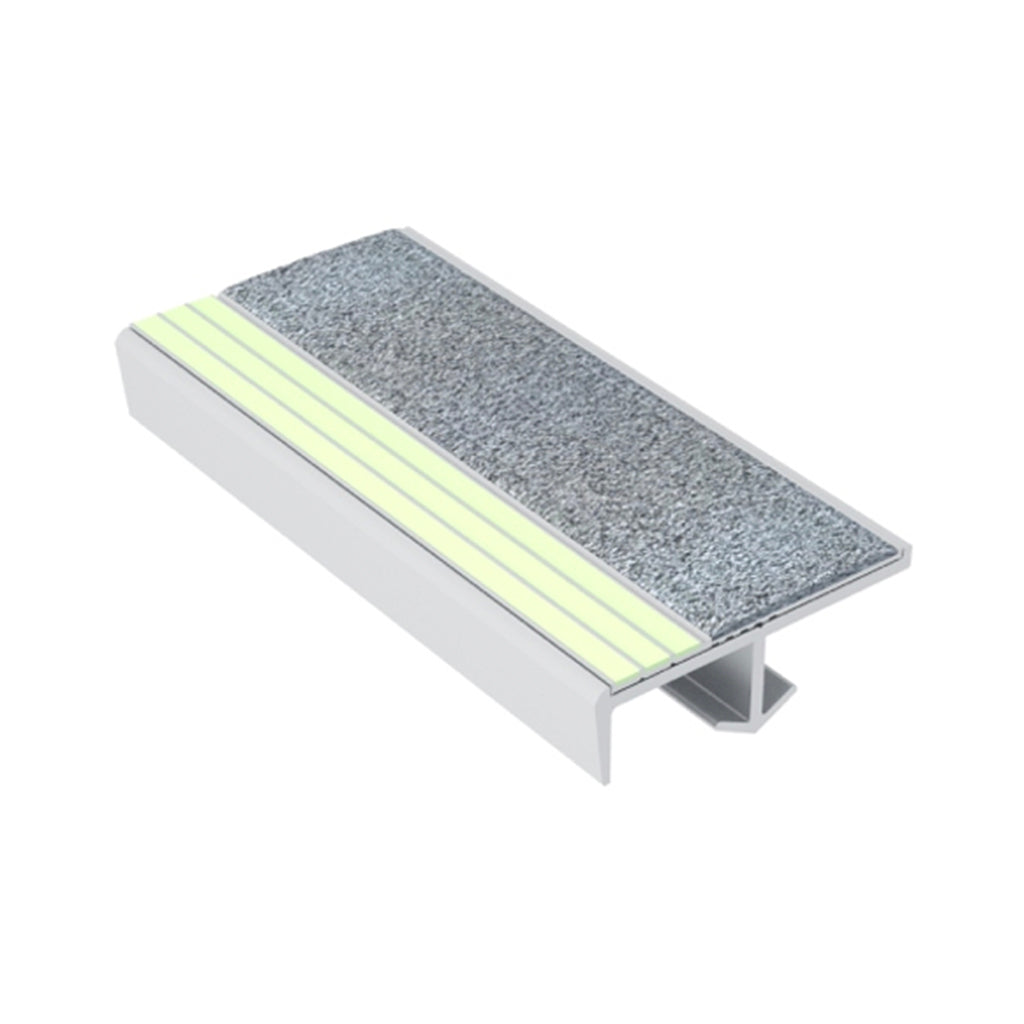

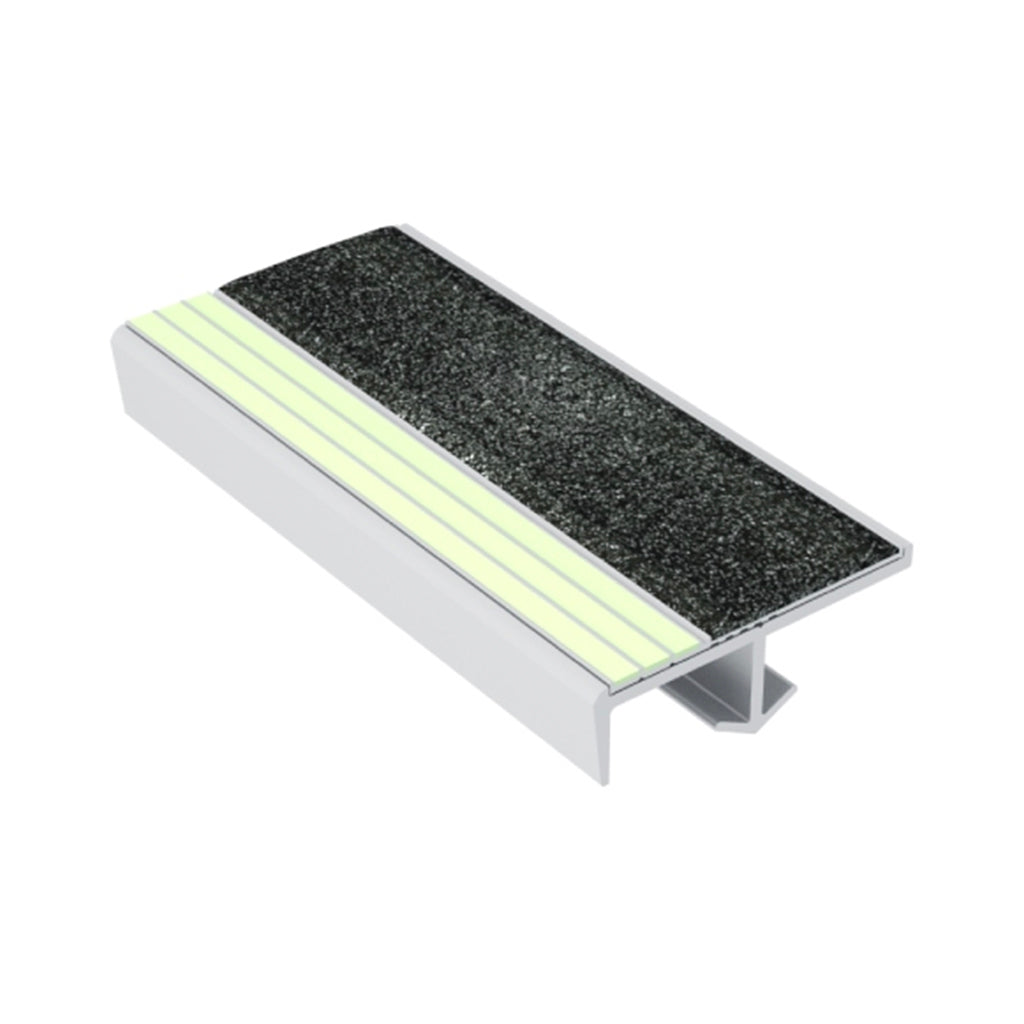

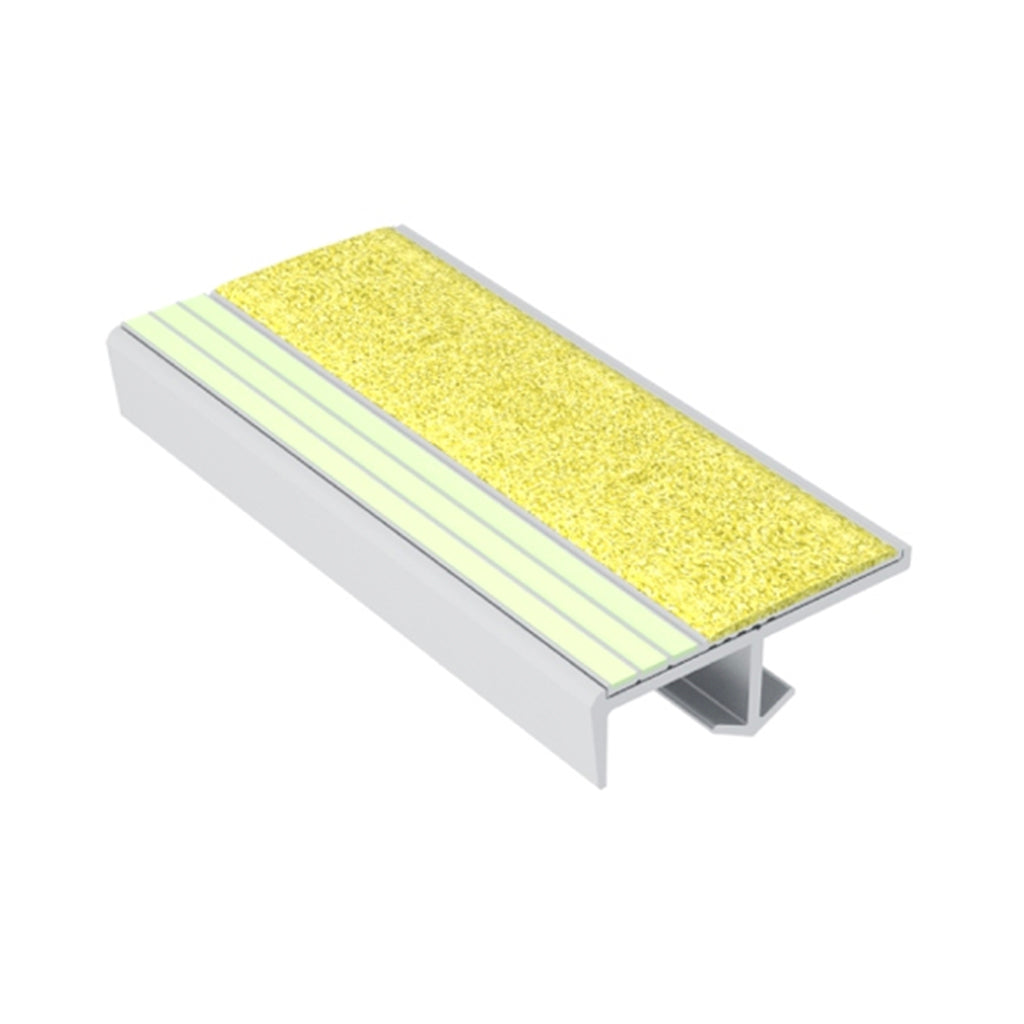

Ecoglo® S2-N30 Non-Slip Cast in Place Stair Nosing
Ecoglo® S2-N30 Non-Slip Cast in Place Stair Nosing
Couldn't load pickup availability
The S2-N30 Non-Slip Anodized Stair Nosing offers step-edge visibility, long-lasting anti-slip protection, and a sleek appearance.
Installed directly into wet concrete, it creates a smooth, flush finish that reduces slip and trip risks.
Suitable for concrete, concrete-filled steel pan, and precast concrete stairs, it provides durable, UV-resistant, and abrasion-resistant protection for both indoor and outdoor use, ensuring lasting performance without damage.
- Slip-resistant silicon carbide ridges.
- Meets IBC, IFC, OSHA egress code.
- UL 1994 Certified
- Indoor/outdoor UV-rated aluminum base.
- 5‑Year Warranty
- Manufactured in Canada/USA
S2-N30 Non-Slip Cast in Place Stair Nosing Product Information
- Installation: Install into wet concrete; suitable for concrete stairs, concrete-filled steel pan stairs, and precast concrete stairs.
- Sizes: Standard lengths of 8ft and 10ft.
- Inserts: Attached or unattached (unattached inserts can be installed later to ensure cleanliness and prevent damage during construction); installed with premium polyurethane adhesive.
- Protective Tape: Clear tape wraps around the product during installation; remove by cutting and peeling the tape.
- Weight: 0.516 lbs/ft.
- Aluminum Finish: 6063-T5 mill finish aluminum with a clear acrylic lacquer finish to prevent corrosion.
Specs & Data Sheet
Durability: Silicon carbide non-slip material bonded to aluminum withstands heavy foot traffic without wear.
Step Safety: Color contrast provides slip resistance in all weather conditions.
Indoor/Outdoor Use: Tested for UV exposure, salt spray, freeze-thaw, and washability with excellent results.
Eco-friendly: LEED-qualified, recyclable, and no disposal costs.
GUIDES
-
2024 COMPLIANCE GUIDE
DOWNLOADThis document provides guidance to local building officials, architects, and contractors as to the requirements for
luminous egress path markings in new and existing high-rise buildings, in accordance with the 2024 International Building and Fire codes. -

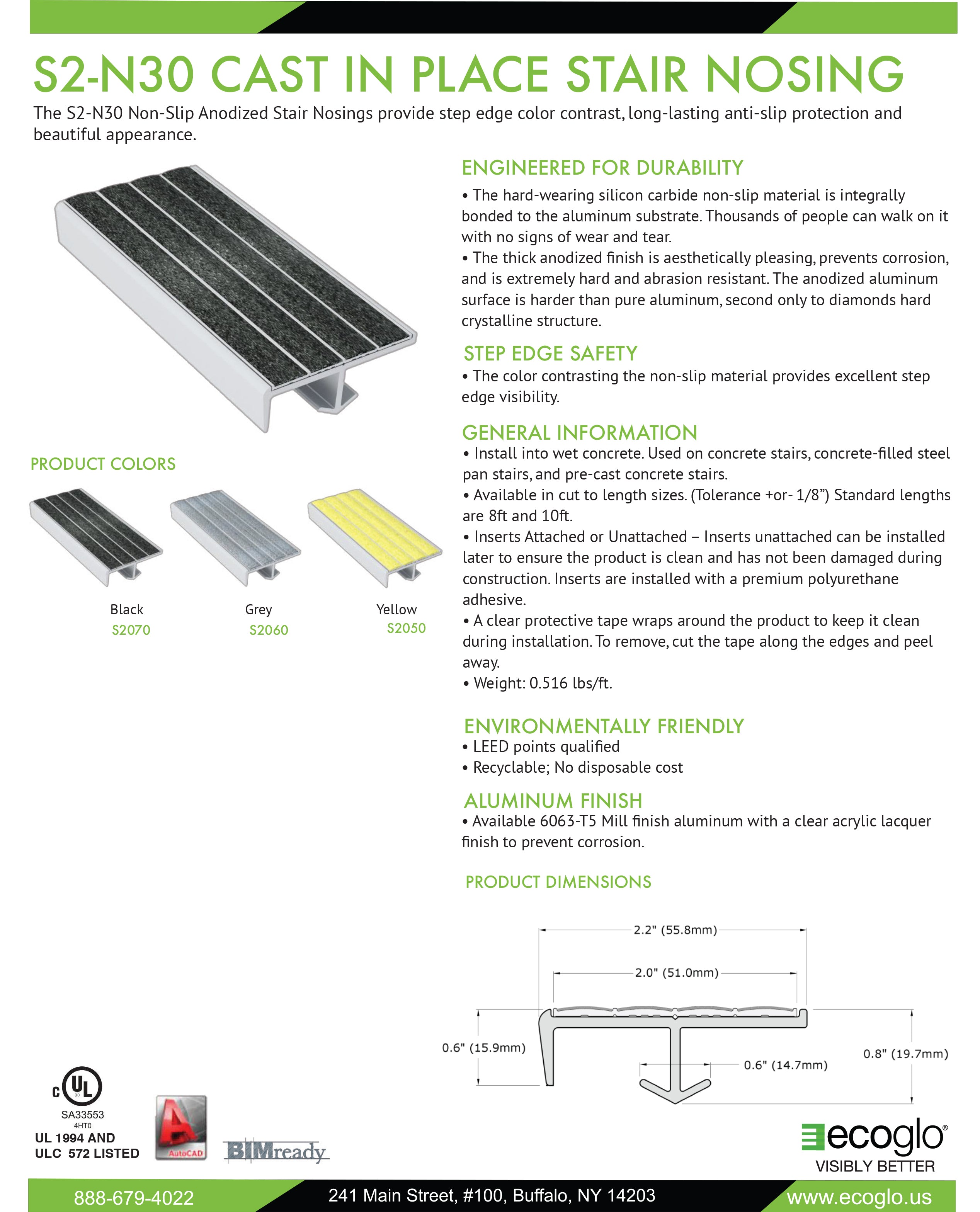

S20-N30 DATA SHEET
DOWNLOADThe S2-N30 Non-Slip Anodized Stair Nosings provide step edge color contrast, long-lasting anti-slip protection and
beautiful appearance.
General Information
Install with premium polyurethane adhesive.
- Option for mechanical fasteners.
- Do not use mechanical fasteners when installing outdoors.
- Available in cut to length sizes. (Tolerance +or- 1/8”) Standard lengths are 8ft and 10ft.
- Weight: 0.1 lbs/ft.
Engineered for Durability
- Manufactured using Ecoglo®’s patented process which produces the most durable and highly efficient photoluminescent product available.
- Unique ridges in the photoluminescent strips protect it from most abrasive wear. They provide slip resistance while still allowing the product to be easily cleaned.
- The hard-wearing silicon carbide non-slip material is integrally bonded to the aluminum substrate. Thousands of people can walk on it with no signs of wear and tear.
Superior Step Edge Safety
- The color contrasting the non-slip material with advanced photoluminescent technology provides step edge visibility in all light conditions.
- The unique ridges in the Ecoglo® photoluminescent strips and the integrated anti-slip contrast strips provide all-weather slip resistance.
Installed Durability:
- The rigid aluminum base spreads any applied load over a greater area of installation adhesive. Installation with a premium polyurethane adhesive/sealant is extremely durable, moisture resistant, and works very well on both smooth and textured surfaces.
For Indoor Use and Outdoor Use:
- Tested to accelerated UV/weathering exposure, and proven to be highly resistant to the effects of UV/weathering.
- The loss in performance is less than can be detected by the human eye when subjected to 6000 hours of UV exposure, which is similar to 30 years of outdoor exposure.
- The polymer used in Ecoglo’s patented process is “long chain” which forms a strong UV resistant product when bonding.
Environmentally Friendly Photoluminescent Contrast Strip
- LEED points qualified
- Zero energy consumption
- Non-Radioactive and Non-toxic
- Recyclable; No disposable cost
