Ecoglo® F4B-N30, 3.2 in Aluminized Aluminum Flat Non-Slip Stair Nosing for Egress Safety
Couldn't load pickup availability
Ecoglo® F4B-N30, 3.2-Inch-Wide Anodized Aluminum Flat Stair Nosing for Egress Stair Safety
A right-angled, non-photoluminescent aluminum stair nosing that provides durable slip resistance, visible step-edge contrast and protection for high-traffic public and commercial stairs.
The Ecoglo® F4B-N30 Non-Slip Flat Stair Nosing is a 3.2-inch-wide, right-angled aluminum profile designed to fit over the leading edge of existing steps. It is suitable for public stairways, exit stairs, egress routes and other high-traffic applications where dependable traction and clearly defined stair edges are important.
The F4B-N30 incorporates a hard-wearing silicon carbide non-slip insert that is integrally bonded to the aluminum substrate. The contrasting insert helps occupants recognize the leading edge of each step under normal and emergency lighting while supplementing the stair surface’s existing slip-resistant properties.
This non-photoluminescent stair nosing can be installed over concrete, timber, tile, steel, checker plate and suitable thin carpeted stairs. Its durable aluminum construction and clean architectural appearance make it suitable for new construction, stair renovations and commercial retrofit projects.
-
✔

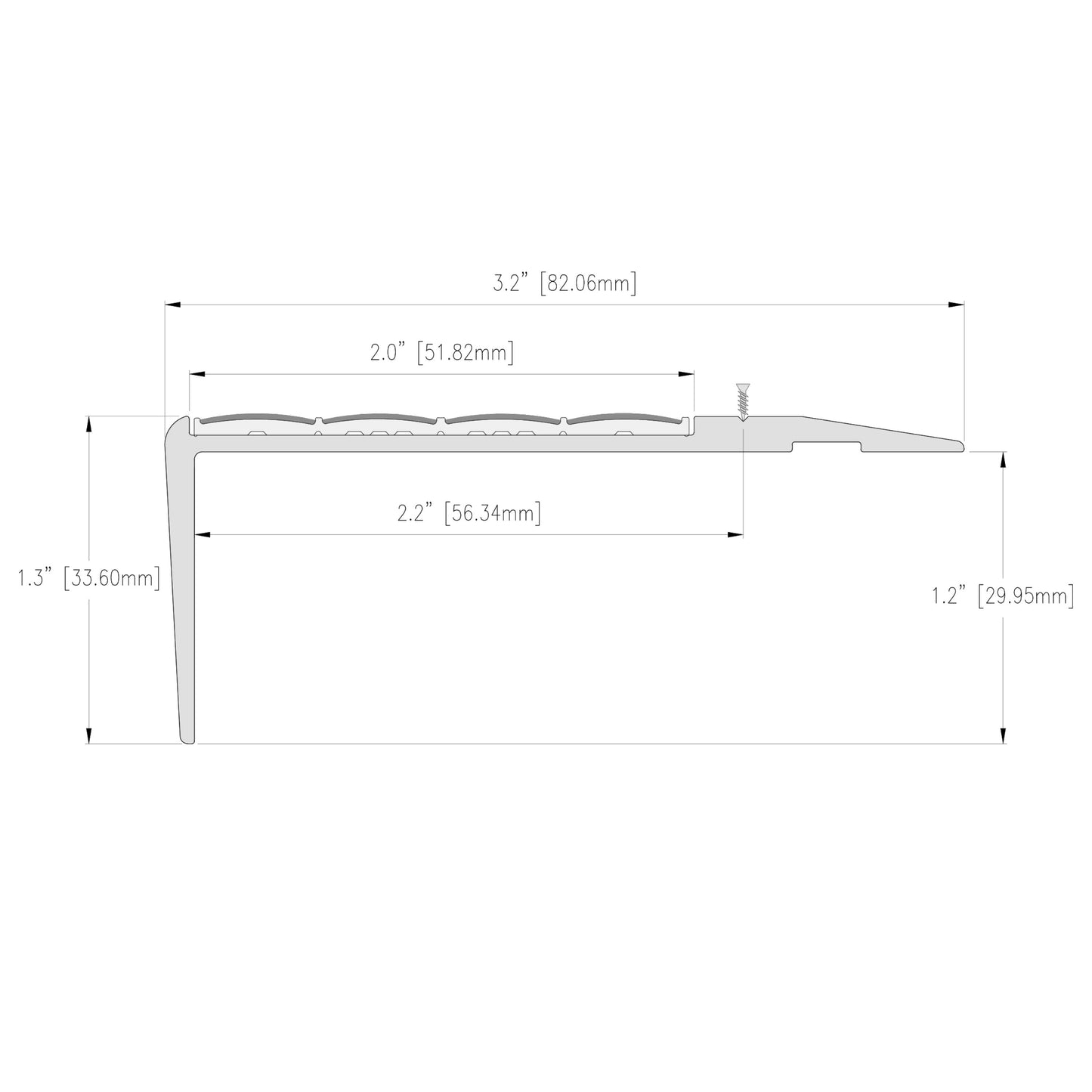

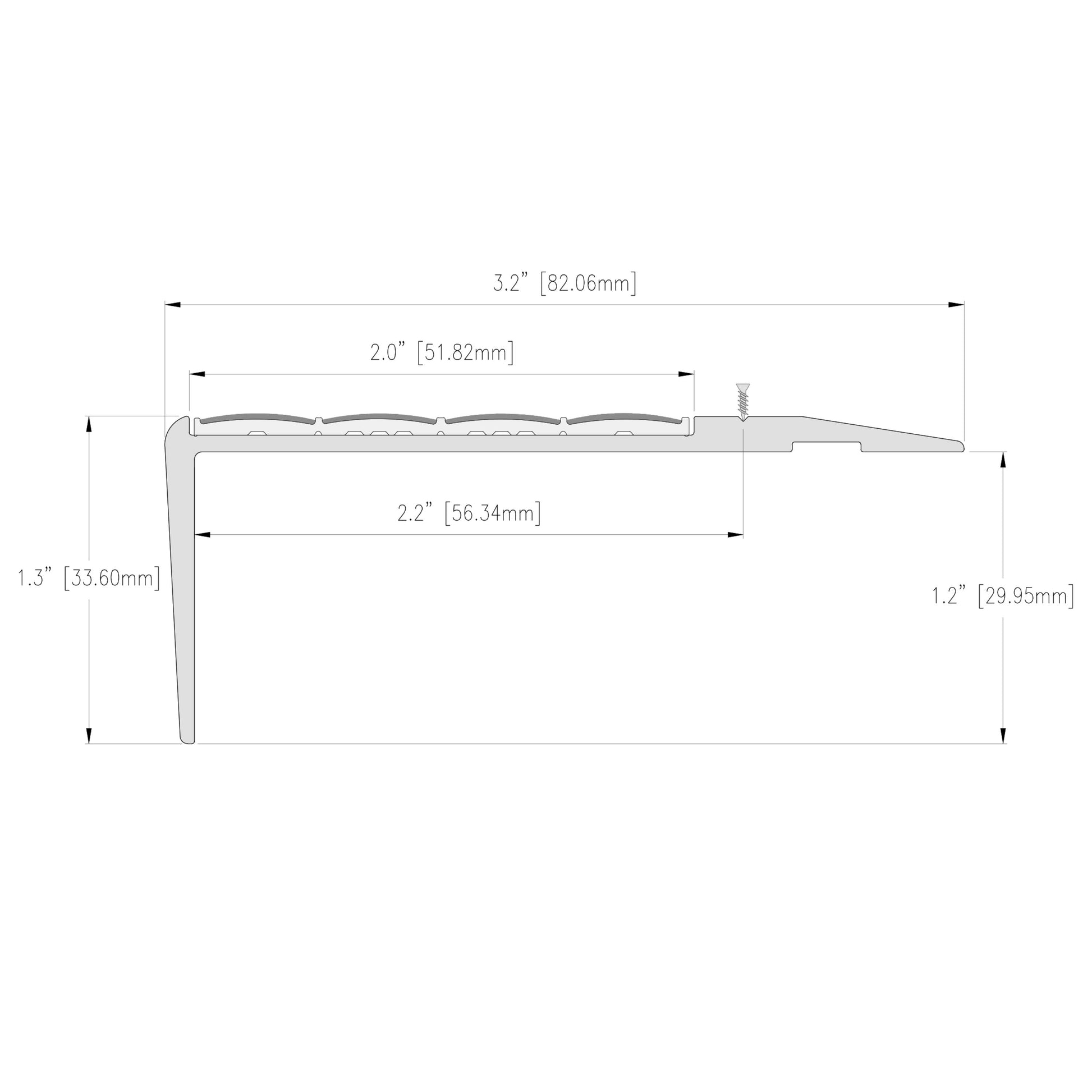

3.2-inch-wide right-angled profile: Covers the tread edge and front face of the step for added protection and a clean finished appearance.
-
✔
Non-photoluminescent construction: Designed for traction, visible colour contrast and physical stair-edge protection rather than glow-in-the-dark path marking.
-
✔
Supports egress stair safety: Helps improve foot placement and step-edge recognition on public, commercial and institutional exit stairs.
-
✔
Improved step-edge contrast: The contrasting non-slip insert helps clearly identify the leading edge of each stair under normal and emergency lighting.
-
✔
Integrated non-slip protection: A hard-wearing silicon carbide traction surface is integrally bonded to the aluminum substrate.
-
✔
Supplements existing stair traction: Adds a durable non-slip surface to help reduce slips on heavily travelled stairs.
-
✔
Designed for heavy foot traffic: The bonded non-slip insert is engineered to withstand thousands of foot passes without visible signs of wear.
-
✔
Protects vulnerable stair edges: The right-angled aluminum profile helps cover worn, damaged or exposed tread edges.
-
✔
Suitable for indoor and outdoor use: Designed for durable performance in interior and exterior stair applications.
-
✔
Multiple compatible substrates: Suitable for concrete, timber, tile, steel, checker plate and thin carpeted stairs.
-
✔
Suitable for commercial carpet: May be installed over appropriate thin industrial or commercial carpet without underlay, subject to substrate and installation requirements.
-
✔
Durable anodized finish: Clear and black anodized finishes provide an attractive architectural surface that helps resist corrosion, abrasion and everyday wear.
-
✔
Hard aluminum surface: The anodized coating creates a harder and more abrasion-resistant surface than untreated aluminum.
-
✔
UV and environmental durability: Designed and tested for resistance to accelerated weathering, salt spray and freeze-thaw conditions.
-
✔
Easy to maintain: The aluminum profile and bonded non-slip insert are designed for practical cleaning and long-term use.
-
✔
Flexible installation: Install with premium polyurethane adhesive and mechanical fasteners, or with adhesive only where appropriate.
-
✔
Pre-drilled holes available: Supplied with pre-drilled holes for secure and efficient mechanical installation.
-
✔
Installation hardware included: Includes stainless steel fasteners and concrete nylon anchors.
-
✔
Standard hole spacing: Holes are normally positioned 2 inches from each end and approximately 12 inches apart.
-
✔
Standard and custom lengths: Available in standard 8-foot and 10-foot lengths, with cut-to-length sizes available to a tolerance of ± 1/8 inch.
-
✔
Attached or unattached inserts: Unattached inserts are recommended when the aluminum profile will be cut on site.
-
✔
Weight: Approximately 0.462 lb per linear foot.
-
✔
6063-T5 aluminum construction: Available in mill finish, clear anodized or black anodized aluminum.
-
✔
Architectural anodizing: Clear and black finishes are anodized to Type 2, Class 1, with a 20-micron coating thickness.
-
✔
Special-order finishes: Light bronze and dark bronze anodized finishes are available at an additional cost.
-
✔

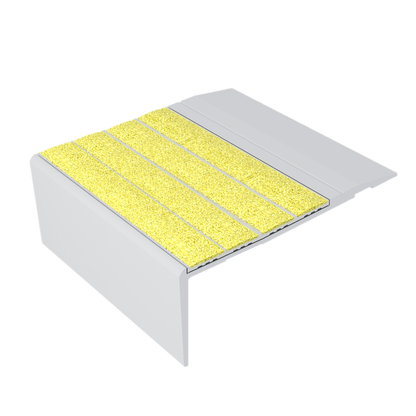

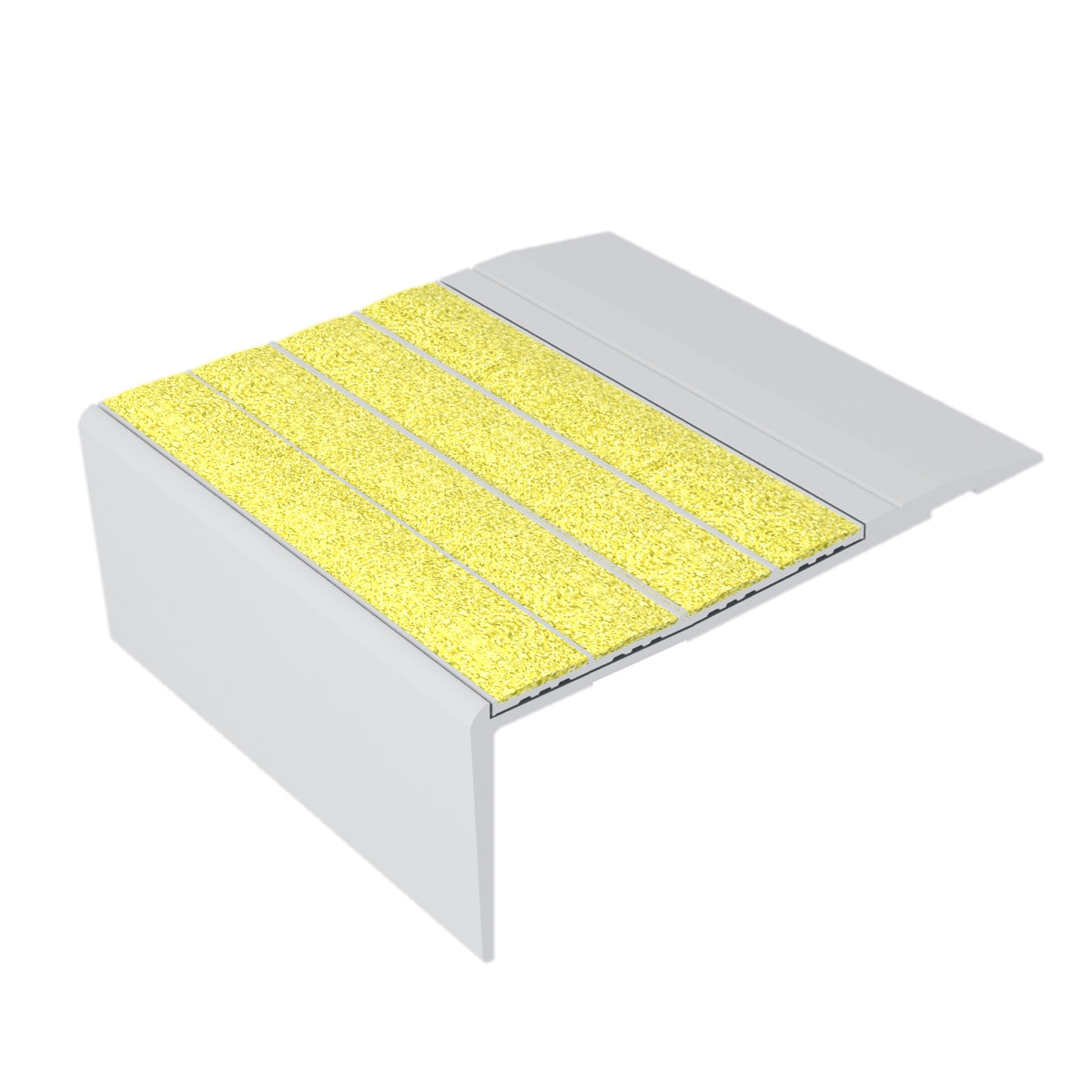

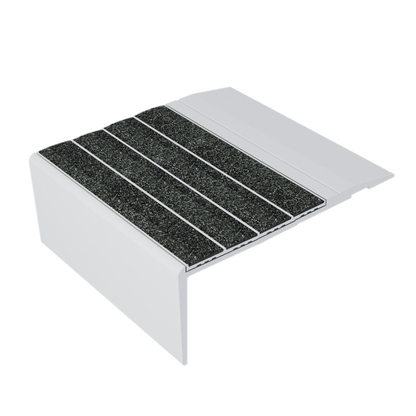

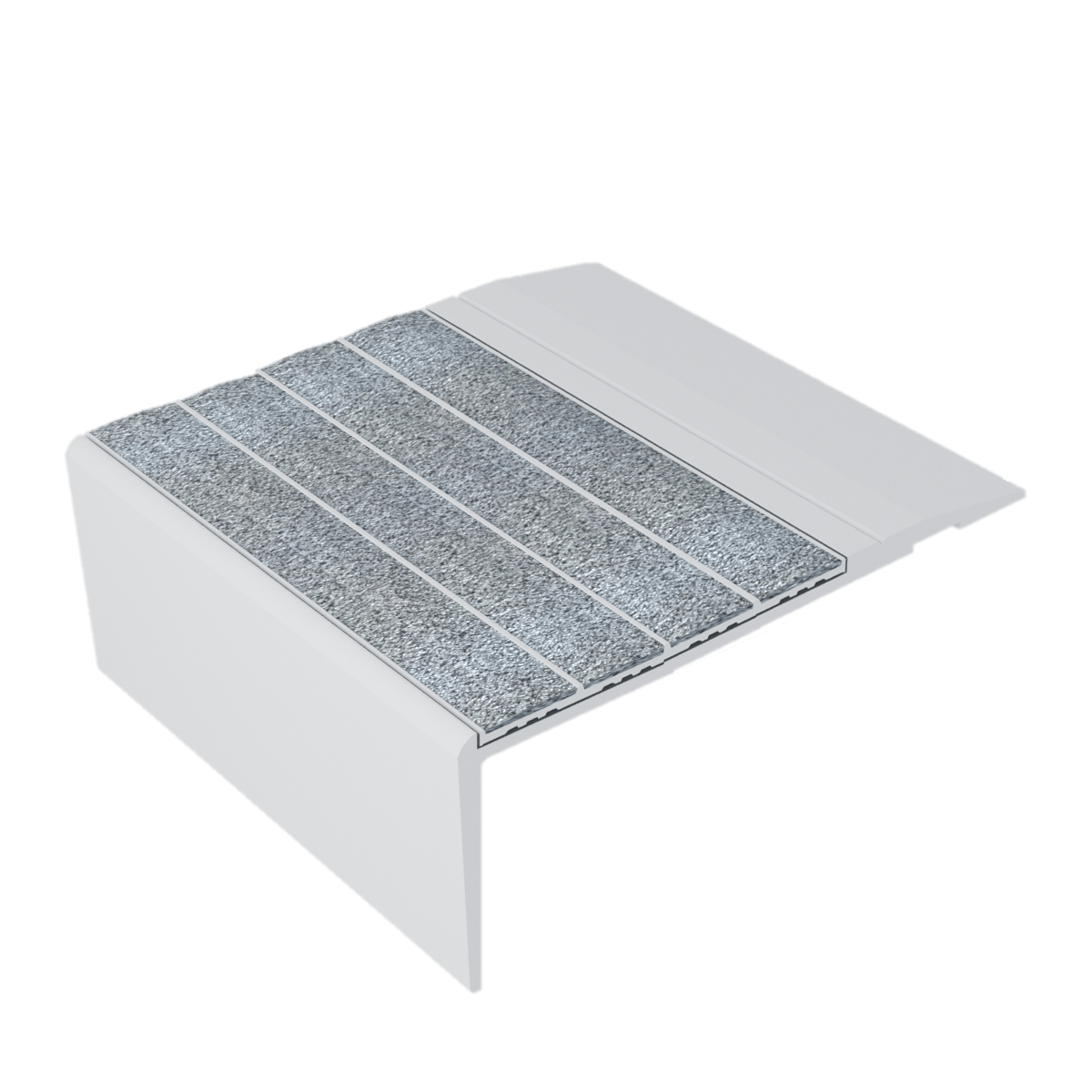

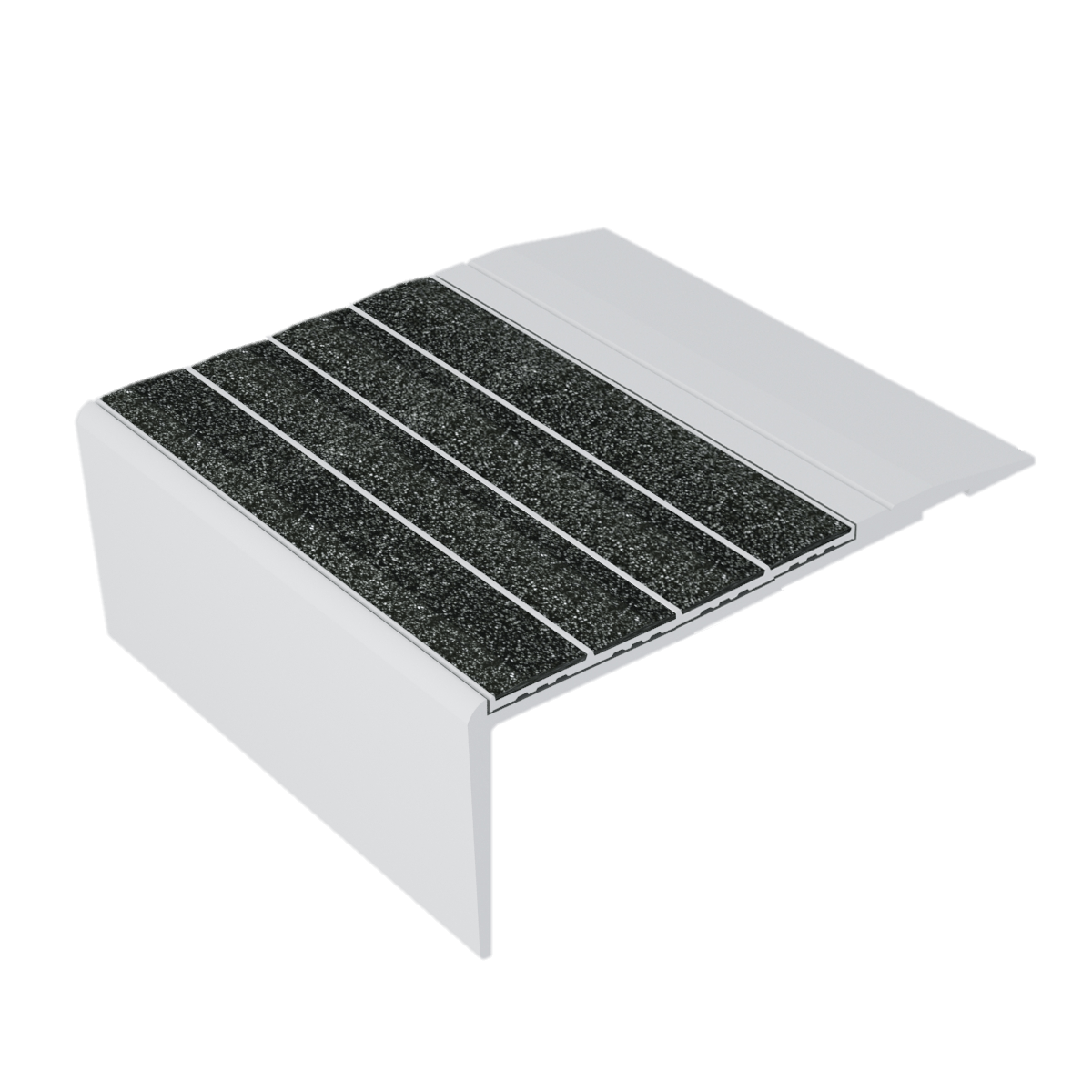

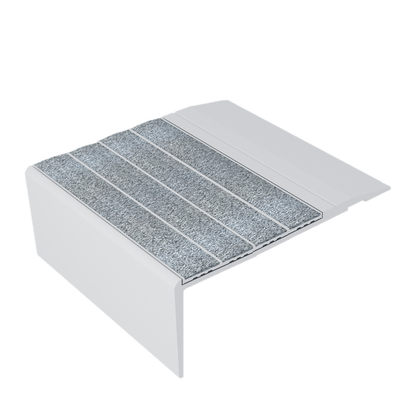

Non-slip insert colours: Available with black, grey or yellow silicon carbide inserts for contrasting step-edge identification.
-
✔
Recyclable aluminum construction: Aluminum-based and 100% recyclable.
-
✔
Recycled material content: Approximately 20% of the aluminum content in the Ecoglo® secondary billet specification is recycled scrap.
-
✔
May contribute toward LEED objectives: Supports applicable construction-waste-management, recycled-content and low-emitting-material goals.
The Ecoglo® F4B-N30 does not contain photoluminescent material and does not remain visible after the lights go out. It should not be represented as a luminous egress path marking product.
Do not apply UL 1994, ULC 572, photoluminescent brightness standards or IBC/IFC luminous egress path marking claims to the F4B-N30. These claims apply only to the appropriate photoluminescent Ecoglo® product configuration.
The hard-wearing silicon carbide insert is designed to reduce slips and provide durable traction on heavily travelled stairs.
- UL 410 — Standard for Slip Resistance of Floor Surface Materials
- AS/NZS 4586-1999 — Slip Resistance Classification of New Pedestrian Surface Materials
References to UL 410 should be stated as “tested in accordance with” or “tested to” unless a current UL certification or listing specifically covering the F4B-N30 has been independently confirmed.
- ASTM G155-04, Cycle 1, 2,000 hours — Accelerated xenon-arc weathering
- ASTM B117-97, 500 hours — Salt-spray resistance
- ASTM C1026-87 — Freeze-thaw resistance
- ASTM D1242-95a — Abrasion resistance
- ASTM B244-97 — Measurement of anodic coatings on aluminum
- ASTM B137-95 — Coating mass per unit area of anodically coated aluminum
- ASTM F510-93 — Abrasion resistance using a grit-feed abrader
- JIS H8682-1:1999 — Wheel-wear testing of anodic oxide coatings
- ASTM D4828-94 — Practical washability
- ASTM B136-84 — Stain resistance of anodic coatings
- ASTM E162-02 — Surface flammability
- ASTM D635-03 — Horizontal burning performance
- FAA AC 23.2, Paragraph 4.b — Horizontal burn test
The aluminum-based F4B-N30 is 100% recyclable. Approximately 20% of the aluminum content in the Ecoglo® secondary billet specification is recycled scrap. Ecoglo®’s recommended low-VOC polyurethane installation adhesive may also support applicable low-emitting-material objectives.
Contractor & Distributor Pricing
Contractors, installers, property managers, and commercial buyers may qualify for special pricing on ComposiGrip™ stair tread covers, anti-slip strips, and safety products.
- Special pricing for qualifying contractors and distributors
- Bulk order support for commercial and residential projects
Ecoglo® F4B-N30 Non-Slip Flat Stair Nosing – 3.2-Inch-Wide Anodized Aluminum Step-Edge Protection
Improve stair traction, define step edges and modernize commercial, institutional and public stairways with durable non-slip protection.
The Ecoglo® F4B-N30 Non-Slip Flat Stair Nosing is a right-angled aluminum stair-nosing profile designed to fit over the front edge of existing steps. Its 3.2-inch-wide profile combines a hard-wearing silicon carbide non-slip insert with durable aluminum construction to improve traction and clearly define the step edge.
Designed for public stairways, exit stairs, commercial facilities and high-traffic environments, the F4B-N30 can be installed over concrete, timber, tile, steel, checker plate and suitable thin commercial carpet. It provides a clean architectural appearance while helping protect worn stair edges and supplement the stair surface’s existing slip resistance.
This product does not contain glow-in-the-dark egress markings and does not provide visible guidance after the lights go out. Photoluminescent listings and luminous-egress code references, including UL 1994, ULC 572 and IBC/IFC luminous egress path marking requirements, must not be applied to the F4B-N30.
The integrally bonded silicon carbide non-slip insert provides durable traction to help reduce slips on heavily travelled stairways.
The contrasting non-slip insert clearly identifies the leading edge of the stair under normal and emergency illumination.
The non-slip material is permanently bonded to the aluminum profile for dependable performance in public, commercial and institutional environments.
Clear, black and special-order bronze anodized finishes provide a clean appearance while helping resist corrosion, abrasion and everyday wear.
Non-Photoluminescent Stair Safety and Edge Protection
The F4B-N30 is designed for applications where durable traction, visible colour contrast and physical protection of the stair edge are required without a photoluminescent component.
The contrasting non-slip insert helps occupants recognize the step edge under normal and emergency lighting.
Supplements the stair’s existing non-slip properties with an aggressive silicon carbide traction surface.
The right-angled profile covers the tread edge and front face to help protect worn or vulnerable stair nosings.
Modernizes existing stairs without requiring replacement of the complete stair system.
Recommended Stair Substrates and Applications
Aluminum Finish and Non-Slip Colour Options
Select a mill, clear-anodized or black-anodized aluminum profile with a black, grey or yellow silicon carbide non-slip insert.
Clear anodized
Black anodized
Grey
Yellow
Technical Specifications
Tested Material Performance
Non-Photoluminescent Product Notice
The F4B-N30 provides non-slip traction, colour contrast and physical stair-edge protection. It does not glow in darkness and should not be specified as a luminous egress path marking. Projects requiring visible guidance after a power failure should use the appropriate Ecoglo® photoluminescent stair-nosing system.
Recyclable Aluminum and LEED Contribution
Specify Ecoglo® F4B-N30 Non-Slip Stair Nosings
Request product specifications, CAD details, BIM resources, cut-to-length options or project pricing for the 3.2-inch-wide F4B-N30 Non-Slip Flat Stair Nosing.
GUIDES
-
2024 COMPLIANCE GUIDE
DOWNLOADThis document provides guidance to local building officials, architects, and contractors as to the requirements for
luminous egress path markings in new and existing high-rise buildings, in accordance with the 2024 International Building and Fire codes. -
F4B-E30 SERIES DATA SHEET
DOWNLOADThe F4-E20 Photoluminescent Anodized Flat Stair Nosing provides step edge visibility and enhances egress speed in all
light conditions.They can be used on a range of substrates including concrete, timber, tiles, steel, checker plate, and thin
carpeted stairs.
General Information
Install with premium polyurethane adhesive.
- Option for mechanical fasteners.
- Do not use mechanical fasteners when installing outdoors.
- Available in cut to length sizes. (Tolerance +or- 1/8”) Standard lengths are 8ft and 10ft.
- Weight: 0.1 lbs/ft.
Engineered for Durability
- Manufactured using Ecoglo®’s patented process which produces the most durable and highly efficient photoluminescent product available.
- Unique ridges in the photoluminescent strips protect it from most abrasive wear. They provide slip resistance while still allowing the product to be easily cleaned.
- The hard-wearing silicon carbide non-slip material is integrally bonded to the aluminum substrate. Thousands of people can walk on it with no signs of wear and tear.
Superior Step Edge Safety
- The color contrasting the non-slip material with advanced photoluminescent technology provides step edge visibility in all light conditions.
- The unique ridges in the Ecoglo® photoluminescent strips and the integrated anti-slip contrast strips provide all-weather slip resistance.
Installed Durability:
- The rigid aluminum base spreads any applied load over a greater area of installation adhesive. Installation with a premium polyurethane adhesive/sealant is extremely durable, moisture resistant, and works very well on both smooth and textured surfaces.
For Indoor Use and Outdoor Use:
- Tested to accelerated UV/weathering exposure, and proven to be highly resistant to the effects of UV/weathering.
- The loss in performance is less than can be detected by the human eye when subjected to 6000 hours of UV exposure, which is similar to 30 years of outdoor exposure.
- The polymer used in Ecoglo’s patented process is “long chain” which forms a strong UV resistant product when bonding.
Environmentally Friendly Photoluminescent Contrast Strip
- LEED points qualified
- Zero energy consumption
- Non-Radioactive and Non-toxic
- Recyclable; No disposable cost
